HF/SSB Test Set | KHF-950 HF/SSB System

Product Description

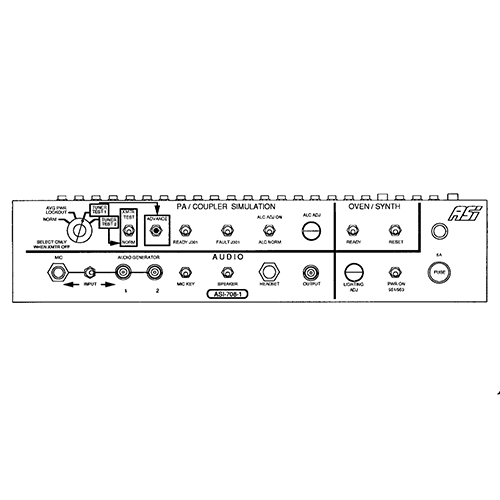

The ASI-708-1 is designed for testing the KHF-950 HF/SSB system. Several system units maybe operated together, or KAC-952 PA/coupler can be simulated to allow testing of KCU-951 controller and KTR-953 receiver/exciter. These test set provides a microphone, audio generator, and headset inputs with an audio amplifier, and internal speaker to facilitate testing. The ASI-708-1 allows for simulation of fault and ready signals for the KAC-952 PA/Coupler. A reset switch is also initialized to the KCU-951 microprocessor program. Included with the test set are hardwired cables to hookup systems units.


Included with the test set are hardwired cables to hookup systems units.

Specifications

• Dimensions:
  3.00 x 14.00 x 10.00 in
• Power:
  15 VDC — 35 VDC
• Manufactured to replace:
  Bendix/King KTS-157
• Units Tests:
  KCU-951 controller KAC-952 PA/coupler (ASI-70-8B) KTR-953 Receiver/exciter KFS-594 control unit (ASI-70-8A)
• Optional Equipment:
  KA/KFS-594 test set adapter (ASI-70-8A) Antenna Simulator (ASI-70-8B)

Product Codes

• Mfr Part No
  ASI-708-1
• SCHEDULE B CODE
  8544.19.0000
