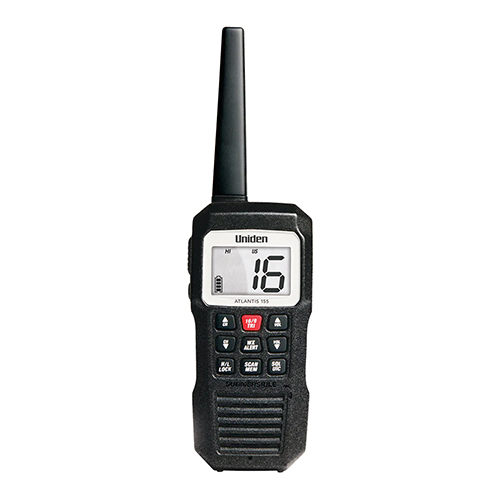

Atlantis 155 Two-Way Handheld VHF Floating Marine Radio

Uniden

Call For Pricing

In stock

EDMO # ATL155

MFR Part # ATLANTIS 155

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Atlantis 155 is a tough and reliable handheld marine radio that features all NOAA weather channels, as well as all U.S.A., International, and Canadian marine channels. This radio meets JIS8 submersible waterproof standards. A bright backlit LCD display offers users simple operation whether during day- or nighttime operations.

Features

JIS8 submersible, waterproof, and floating design
1 watt / 2.5 watt transmitter — plus Power Boost PPT key
Includes NOAA Weather channels and sounds warning alert tone
Triple watch mode monitors channels 16 and 9 simultaneously monitoring a selected channel
Weather alert watch mode mutes the radio while monitoring a preset weather channel and sounds an alarm is an alert is broadcast
Scans and monitors emergency 16/9 channels regularly within normal scanning cycles
10-hour battery life with battery save mode with on-screen battery indicator

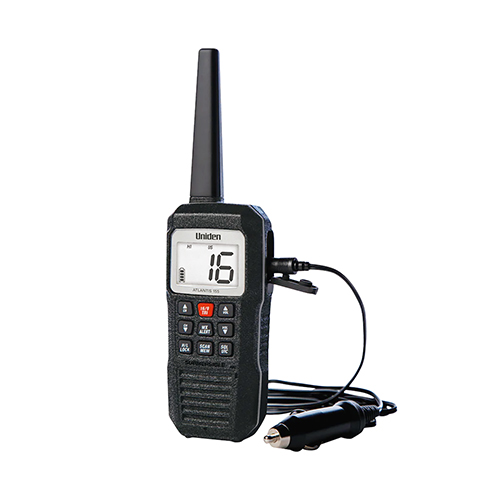

Includes large, bright backlit display, headset jack, DC adapter, belt clip & 4xAAA rechargeable NiMH batteries

Specifications

Weight:

8.53 oz (242 g), includes batteries Dimensions (without antenna): 8.98 x 2.52 x 1.54 in (228 x 64 x 39 mm) Channels: All US, International, and Canada marine channels and 10 weather channels Frequency Control: PLL Frequency Tolerance Transmit: 0.5 PPM (at 25°C) Operating Temperature: -4°F to 122°F (-20°C to 50°C) Antenna Type: flexible whip Microphone Type: built-in electret type Display : LCD Speaker: 8Ω @ 1 watt Power Source: 4 rechargeable NiMH batteries 950 mAh 4xAAA TRANSMITTER: Frequency Range: 156.050 ~ 161.6 MHz Frequency Stability: ± 5 PPM Power Output: 1W and 3W Spurious Emissions: -34 dBm on Hi; -40 dBm on Lo Current Drain: 1000 mA (3W) RECEIVER : Type: direct conversion super heterodyne phase locked loop system for local oscillator Frequency Range: 156.05 MHz — 162.55 MHz Sensitivity: 0.28 μV for 12 dB SINAD Squelch Sensitivity: threshold 0.22 μV Audio Frequency: response +5.5 dB @ 500 Hz; -6.5 dB @ 2000 Hz Adjacent Channel Selectivity: 60 dB @ ±25 kHz Audio Output Power: 0.5W @ 10% THD Current Drain Squelched: 60 mA; max. audio: 150 mA
