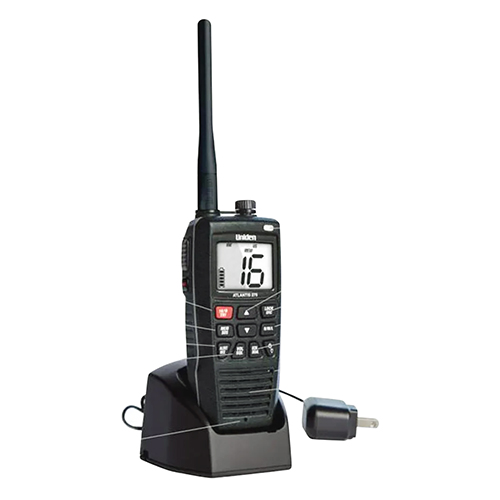

Atlantis 275 Two-Way Handheld VHF Floating Marine Radio | 6-watts

Uniden

Call For Pricing

In stock

EDMO # ATL275

MFR Part # Atlantis 275

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Atlantis 275 feature a powerful six-watt transmitter as well as all of the NOAA emergency weather channel for U.S.A, international, and Canadian marine channels. This marine radio meets IPX8 submersible, water-proof standards and has the large, easy-to-read LCD in either day- or nighttime operations. The handheld design allows users to easy to carry this communication device with you whether on land or sea.

Features

JIS8/IPX8 submersible, waterproof, and floating design
1W / 2.5W / 6W transmitter with Power Boost PTT key
Large 30x40 mm LCD display provides easy-to-read channel numbers
Selectable backlight color — white for day, and orange for night operation
Includes all marine channels — U.S.A. Canada, and international marine VHF channels
NOAA Weather channels sound a warning tone when alert is issued
Easy-to-activate emergency strobe light
6-watt, 5-watt, and 1-watt transmit power
Dual and triple watch operation monitors up to two Coast Guard distress/hailing channels
Includes large, easy-to-read, backit LCD screen, AC and DC adapter, charging cradle, and glow seals
Built-in, Li-ion battery pack with AC and DC charging cables and cradle
Vibrating speaker clears water from from speaker cavity
Built-in flashlight

Specifications

Weight (w/ battery & antenna):

8.46 oz (240 g) (w/battery and antenna) Dimensions (without antenna): 5.35 x 2.44 x 1.53 in, (136 x 62 x 39 mm) Channels: All US/International/Canada marine channels 10 Weather channels Frequency Control: PLL Frequency Tol.: Transmit: 1.5 PPM (at 25°C) Receive: 1.5 PPM (at 25°C) Operating Temperature: -4°F to 131°F (-20°C to 55°C) Antenna Type: flexible whip Microphone Type: built-in electret type Display: LCD Speaker: 8Ω @ 1 watt Power Source: rechargeable lithium-ion battery, 7.4 VDC, 1200 mAh TRANSMITTER: Frequency Range: 156.05~161.60 MHz Frequency Stability: ±10 PPM Power Output: 1.0W & 2.5W & 6W Spurious Emissions: 70 dBc Current Drain: 1400 mA (6W) RECEIVER: Type: direct conversion super heterodyne phase locked loop system for local oscillator Frequency Range: 156~164 MHz Sensitivity: 0.20 μV for 12dB SINAD Squelch Sensitivity: threshold 0.2μV Audio Frequency Response: +5.5 dB @ 500 Hz; -6.5 dB @ 2000Hz Adjacent Channel: selectivity 75 dB @ ±25 kHz Audio Output Power: 0.7W @10% THD Current Drain: Squelched: 60 mA; max. audio: 430 mA
