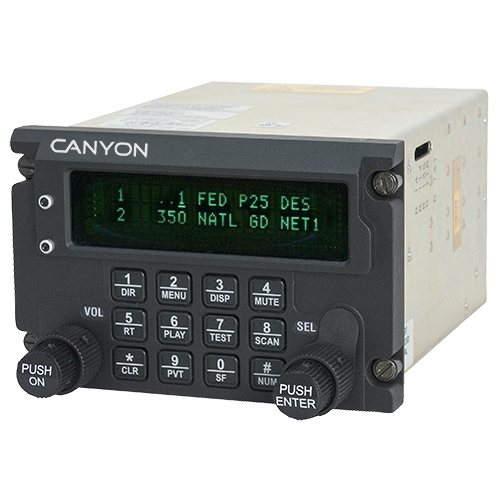

C-5000 Control Head | P-25, NVG, Black, Single Serial RT Control


CANYON AEROCONNECT

Call For Pricing
In stock
EDMO # C-5000-3
MFR Part # 31300-1202-1200-0-10-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The C-5000 enables radio communication on all law enforcement, military, medical, marine, SAR and public service frequencies from 29.7 MHz to 960 MHz with P-25 compliant digital communications. Standard with the C-5000 are 350 preset channel memories, DTMF/Pulse dialing, manual frequency selection on each system, front panel programming, and a PC database data port on the front of the unit.

The C-5000-3 version features a NVG display, black control face, P-25 compatible, and 1 serial RT control.

Features

  • Compatible with P-25 RT-5000
  • Controls up to two transceivers
  • Manual frequency entry
  • 350 preset channels
  • Single serial RT control
  • Black face
  • NVG Display
  • Provides simulcast, cross-band relay and repeater capability
  • Dual independent mic/headset ports

Specifications

  • Weight:
    3 lb
  • Dimensions:
    5.75 x 8.45 x 3.75 in. (overall)
  • Power requirements:
    27.5 Vdc Aircraft Power (+/- 20%)
  • Current requirements:
    0.4 amps to 1.3 amps
  • Temperature:
    -22°F to 140°F (-30°C to +60°C)
  • Panel Lighting:
    5 Vdc, 5 Vrms and 28 Vdc Standard
  • Display:
    NVG
  • Radio Interfaces:
    RT-5000,RT-7200,RT-9600(F), RT-30, RT-138(F) RT-450, RT-406F
  • Preset Channel Memory:
    350 Channels

Product Codes

  • Mfr Part No
    31300-1202-1200-0-10-000
  • PMA
    PT2304NM
