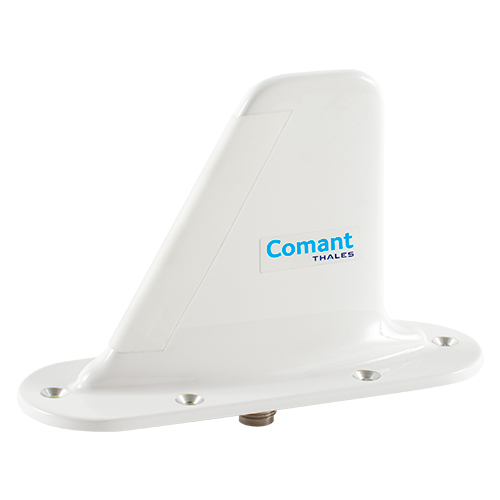

CI 105-17-L ADS-B/UAT Antenna | TNC

COMANT INDUSTRIES

Call For Pricing

In stock

EDMO # CI-105-17L

MFR Part # CI-105-17-L

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The CI 105-17-L is a top of the line ADS-B performance antenna capable of both IN and OUT processing. The single connector blade antenna can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S.

This ADS-B/UAT antenna (EDMO# CI-105-17-L) holds 5 different TSO’s all in the familiar transponder antenna footprint and tiny blade size. Perfect for diversity antenna installations to ensure unsurpassed coverage. Utilizes a standard 6-hole mounting pattern.

Features

Includes a TNC connector
Holds 5 different TSO’s
Specially for receiving ADS-B In benefits like traffic, weather, etc.
Covers ADS-B In/Out across 1090 ES and 978, DME, and backwards compatible with Mode S
6 hole mounting pattern for robustness; great for helicopter installations

Also Purchased

Specifications

Weight:

0.3 lb
Finish:

Polyurethane White Paint
Connector:

TNC (female)
Frequency:

960 MHz – 1220 MHz 1030 MHz – 1090 MHz 978 MHz 1090 ±1 MHz
VSWR (maximum):

2.0:1 1.5:1 1.7:1 1.5:1
Return Loss (maximum):

9.54 dB -13.98 dB -11.73 dB -13.98 dB
Polarization:

Vertical
Radiation Pattern:

Omni-directional
Impedance:

50Ω
Power RF:

1 KW, peak
Certifications:

TSO-C66c, 960-1215 MHz TSO-C74d, Class A, 1030-1090 MHz TSO-C112e, 1030-1090 MHz TSO-C154c, Class A3, 978 MHz TSO-C166b, Class A, B, 1090 ± 1 MHz
RTCA/DO-160G, ENV. CAT.:

[F2X]A CE[R(C,C1)H(R)U2(F,F1)S(L)]XSFSXSXXXX[XXX][XX]X[XXXXXX][XX]AXX
