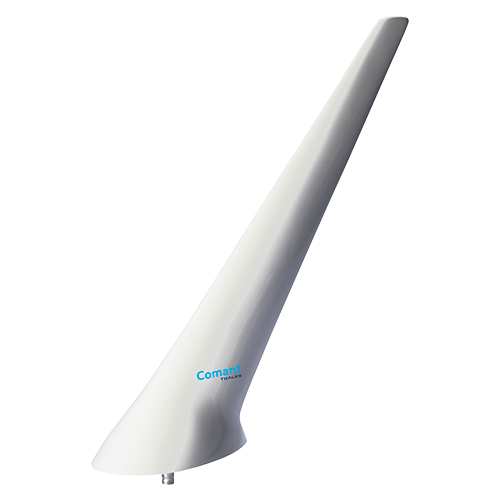

CI 119 VHF Communications Antenna | 118–137 MHz, 50 Ω, Offset BNC Female Connector

Product Description

The CI 119 antenna (EDMO# CI-119) is a four-internal-hole-mount-style blade VHF communication antenna with an offset BNC port equivalent to the CI 138, CI 139, and CI 196, except for variations to the BNC location and hole pattern. The antenna assembly is enclosed in an aerodynamically shaped, injection-molded polyester glass shell with internal components foamed in place for mechanical integrity and is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Weight:
  1.25 lbs
• Height:
  13 in
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1 Max
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power:
  25 W
• Material:
  Valox 420
• Finish:
  Glossy White
• Connector:
  Offset BNC Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  35,000 ft
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  C12704 Cork Neoprene

Product Codes

• Mfr Part No
  CI 119
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 119 Data Sheet
• CI 119 Product Drawing
