D-100 Solder Sleeve Shield Terminator | 0.0110 – 0.125in


TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # D-100-00
MFR Part # 620001-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

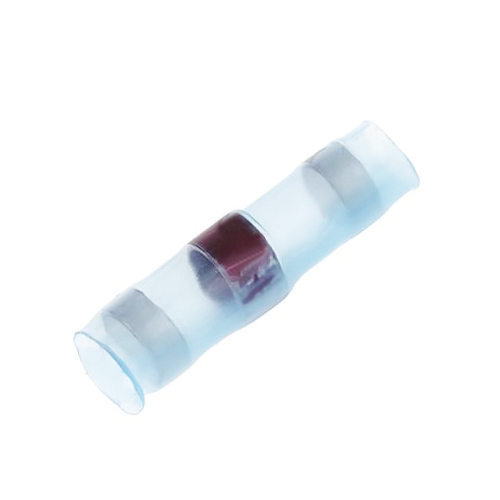

D-100 solder sleeve shield terminators provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

This shield terminal (EDMO# D-100-00) fits cables with a 0.125-inch maximum jacket diameter.

Features

  • Meets NAS-1747 standards
  • 125°C minimum temperature rating
  • Convection or infrared installation procedure

Specifications

  • Insulation Material:
    Heat-Shrinkable, radiation cross-linked polyvinylindene fluoride
  • Solder Preform (with flux):
    Sn63 PB37
  • Thermoplastic Indicator Color:
    Violate
  • Meltable Ring:
    Thermally stabilized thermoplastic, colored gray
  • Temperature Range:
    -55°C to 150°C

Product Codes

  • Mfr Part No
    620001-000
  • ECCN
    EAR99
  • SAE
    SAE-AS83519
  • SCHEDULE B CODE
    8536.90.4000
