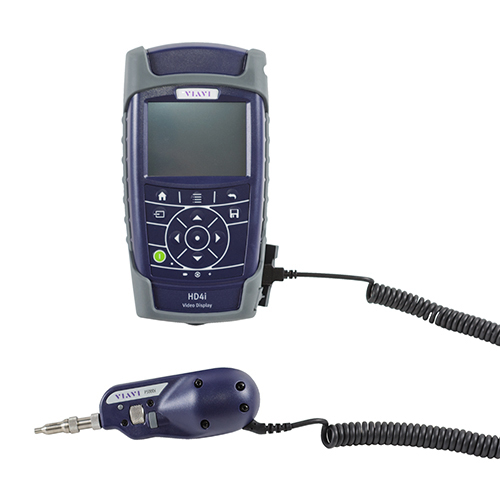

SmartClass™ Fiber Inspection Test Kit | FBP-HD4i, P5000i

Product Description

The HD4I SmartClass digital handheld video display gives technicians the flexibility and performance in one powerful, easy-to-use device. At the push of a button, the HD4I cuts testing and certification time in half and gives customers confidence in their network quality. This unit provides reports with pass/fail fiber connectivity analysis; standardizes fiber inspection, analysis, and testing methods throughout the fiber network; and used to install, test, and maintain fiber systems where portability is essential such as in FTTX, BPON/EPON/GPON, FTTA, and data centers.

Specifications

• Weight:
  1.2 lb
• Dimensions:
  20.83 x 11.18 x 6.35 cm (8.2 x 4.4 x 2.5 in)
• Video display:
  3.5 in color LCD, 4:3 ratio
• Keypad:
  11+2 dome-buttons membrane panels 4 LED indicators
• Connector:
  USB 2.0 (2 x host, Type A; 1 x device, Micro-B)
• Power source:
  12V 2A adapter, battery (8X AA alkaline or rechargeable Li-ION), USB port
• Run time:
  Rechargeable Li-ION = minimum) 8 hours 8X AA alkaline 5 hours
• Charge time AC adaptor:
  8 hours
• Certification:
  CE, IEC/EN61326

Product Codes

• Mfr Part No
  FBP-SD4I
• ECCN
  EAR99
• SCHEDULE B CODE
  9011.90.0000

Documentation

• HD4i Manual
