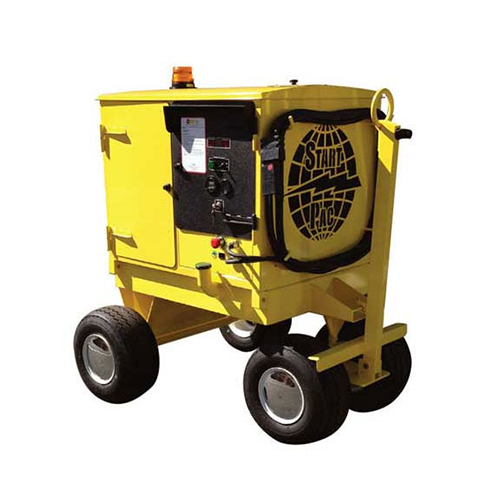

Hi-Brd 4 | Self-Propelled Diesel-Electric

HI-BRD 4.jpg

START PAC

Call For Pricing
Available to order
EDMO # HI-BRD 4
MFR Part # HI-BRD 4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Self-Propelled Hi-Brd 4 ground power unit (GPU) is ideal for operations where there is not necessarily access to a tug, but still the need to walk the unit to the aircraft out on the ramp easily and with minimum difficulty. The unique self-propelled feature makes the eco-friendly 28 volt ground power unit easy to maneuver and can still be towed over longer distances.

Features

  • Heavy duty welded steel frame
  • Removable doors for easy maintenance access
  • Environmentally friendly, low VOC durable powder coat finish
  • Automatic soft engine starts from the battery bank
  • Patent Pending Self-Propelled feature for easier mobility
  • Tier IV EPA emissions compliant
  • Full application approval by Yanmar/Isuzu
  • Built-in battery charger
  • Built-in battery warmer for cold weather operation (optional for units equipped with lead acid batteries)
  • High visibility digital output display
  • Forced air-cooling
  • Over current protection
  • Over voltage protection
  • Over temperature protection

Specifications

  • Weight:
    1073 lb
  • Dimensions:
    56 x 46 x 60
  • Battery type:
    Lead acid or safe lithium-ion
  • Voltage:
    26 VDC
  • Peak current:
    2800A
  • Capacity @10 amp rate:
    56 Ah for lead acid 62 Ah for lithium
  • Charger type:
    Built-in
  • Charging time range:
    1 to 8 hours
  • Maximum continuous current output:
    300A
  • DC voltage output:
    28.5 VDC
  • Phase:
    Single
