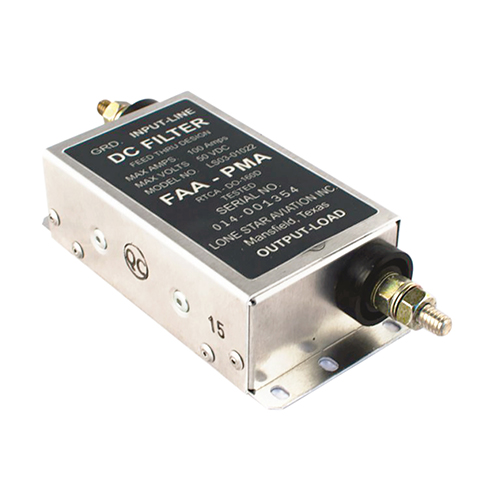

FAA-PMA 100 Amp DC Filter

Product Description

This 50-100 amp dc filter is the “First” EMI-RFI filter design to incorporate a feed thru, fail safe technology for aircraft and military vehicles.  The filter is ultra small measuring (1.40 x 2.40 x 4.70 inch) and includes a universal mounting bracket. This provides alternative mounting solutions for tight avionics racks and compartments in existing as well as new aircraft, land-mobile, marine, and military installations.

The filter’s performance will eliminate EMI-RFI interference from the aircraft’s electrical buss so that critical flight avionics can operate with integrity. The filter is compatible with Experimental, Sport, GA, Rotorcraft, Business, Commercial aircraft, as well as Land-Mobile, Marine and Military Vehicles.

Specifications

• Weight:
  11 oz
• Dimensions:
  1.40 x 2.40 x 4.70 in
• Body Material:
  Clear Anodized Aluminum
• Voltage Range:
  0 - 50 VDC
• Amperage:
  100 A (max)
• Operating Temperature:
  -55° to 70°C

Product Codes

• Mfr Part No
  LS03-01022
• SCHEDULE B CODE
  8543.70.9665
