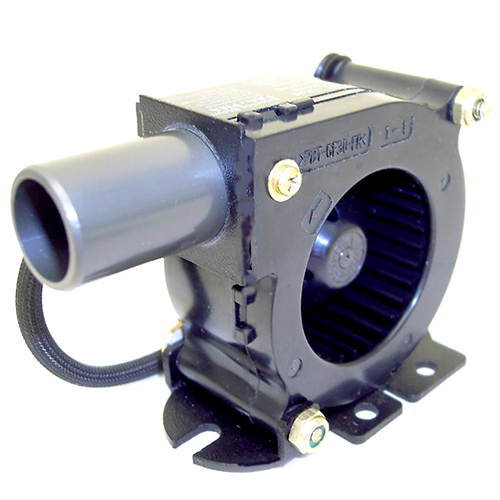

Cyclone 100 Blower | Single Port, 12VDC, FAA/PMA

LONE STAR AVIATION

Call For Pricing

Available to order

EDMO # LS0302040

MFR Part # LS03-02040

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Cyclone 100 is a small and efficient brushless motor that keeps avionic equipment and other electronics from overheating. The universal mounting bracket provides simple installation on many makes and models of aircraft and rotorcraft. This blower motor is well suited for land-mobile, marine, and military applications.

This Cyclone 100 blower fan (EDMO# LS0302040) is a single port fan, operates on 12VDC, and FAA/PMA and DO-160 approved.

Features

Compact and efficient brushless motor design
Universal mounting bracket fit multiple aircraft makes and models
Suited for land-mobile, marine, and military applications

Specifications

Weight:

0.115 lb (52 g) Dimensions: 2 x 1 x 2 in Fan Frame: Aluminum Coating (powder coated): black Input (12 VDC LS03-02040): 9-16.5 VDC 0.320 mA Input (24 VDC LS03-02041): 18.2-32.0vdc 0.300mA 1 Port: 5/8 x 1 in Max. Static Pressure: H2O = 0.64 Max Air Flow: 6.7 CFM Universal Mounting Bracket: Multiple configurations Operating Temperature: -55°C to 70°C Easy Installation: (4 x 6-32) PPH screws FAA-PMA: DO160D RTCA Tested
