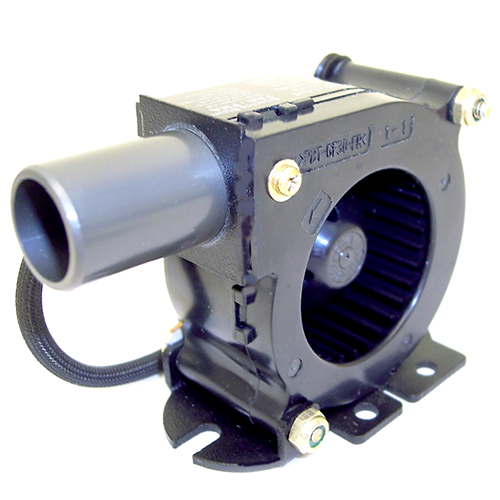

Cyclone 100 Blower | Single Port, 24VDC, FAA/PMA

LONE STAR AVIATION

Call For Pricing

Available to order

EDMO # LS0302041

MFR Part # LS03-02041

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Cyclone 100 is a small (1 x 2 x 2) and efficient (brushless dc motor) one port blower for avionics and other electronics needing thermal cooling. The blower’s universal mounting bracket makes it easy to set-up and install on many make and model aircraft and or rotor-craft. Also installed in Land-Mobile, Marine and Military Vehicles for many PED, radio, GPS applications.

This Cyclone 100 blower fan (EDMO# LS0302041) is a single port fan, operates on 24VDC, and FAA/PMA and DO-160 approved.

Features

Compact and efficient brushless motor design
Universal mounting bracket fit multiple aircraft makes and models
Suited for land-mobile, marine, and military applications

Specifications

Weight:

0.115 lb (52 g) Dimensions: 2 x 1 x 2 in Fan Frame: Aluminum Coating (powder coated): black Input (12 VDC LS03-02040): 9-16.5 VDC 0.320 mA Input (24 VDC LS03-02041): 18.2-32.0vdc 0.300mA 1 Port: 5/8 x 1 in Max. Static Pressure: H2O = 0.64 Max Air Flow: 6.7 CFM Universal Mounting Bracket: Multiple configurations Operating Temperature: -55°C to 70°C Easy Installation: (4 x 6-32) PPH screws FAA-PMA: DO160D RTCA Tested
