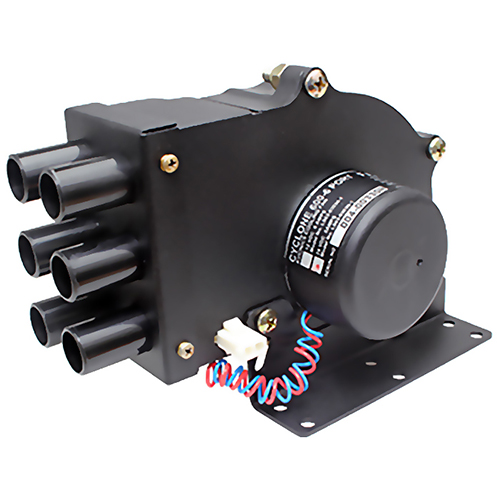

Cyclone 600 Avionic Cooling Fan | 6-Port, 12 VDC, FAA/PMA

LONE STAR AVIATION

Call For Pricing

In stock

EDMO # LS0303034

MFR Part # LS03-03034-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Cyclone 600 is a small and efficient avionic cooling blower that incorporates a highly reliable ball bearing motor for quiet on-board operations. The universal mounting bracket provides simple installation on many makes and models of aircraft. The Cyclone 600 avionics blower is well suited to be used in sport, experimental, general aviation, rotorcraft, and business and commercial aircraft, as well as land-mobile, marine and military vehicles.

This Cyclone 600 cooling fan (EDMO# LS0303034) is a 6-port fan, operates on 12VDC, and FAA/PMA and DO-160 approved.

Features

Meets avionics manufacturers specifications
Six-individual, 5/8-inch outlet ports
12 VDC & 24 VDC models available
Universal bracket allows for mounting in three different orientations
Increases life and integrity of electronic equipment
80,000 hours of continuous duty usage
Includes 36-inch cable harness
Optional blower failure circuit with LED

Specifications

Weight:

13.6 oz (340 g) Dimensions: 4.5 x 3 x 6.25 in Airflow: 45/50 CFM Input Voltage: 13.8 VDC Housing: Plastic UL94 V0 for Flammability Ball Bearing Type: SS Kubar Circuit Protection: over-current, reverse polarity, and locked rotor protection, LED indicator, Low EMI noise – meets Z category, DO160D Amperage: 12 VDC: 0.600 mA 24 VDC: 0.500 mA Operating Temperature: 55°C to 70°C Approvals: FAA-PMA, DO-160D
