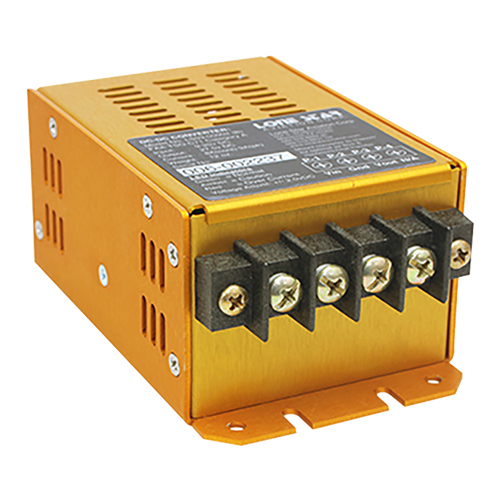

Step Up Converter | 12 VDC to 27.5 VDC, MS Connector

Product Description

The new 14 VDC to 28 VDC Step-Up Converter is the smallest (2.5 x 4.5 x 2.0), most efficient (90%), and the most reliable Step-Up converter in the industry today. This third generation DC converter has been thoroughly tested in the field to many on-board 14 to 28V applications. Top tier trending upgrades are NAV-COM radio equipment such as: Bendix King KX-155, KX-165, KY-196A, KY-196B, Motorola VHF/UHF transceivers and Artex ELT’s. Now is the time to upgrade your panel with a top tier 28V avionics powered by a Lone Star Aviation dc converter.

Specifications

• Weight:
  0.70lbs (320 g)
• Dimensions:
  2.5 x 4.5 x 2.0 in
• Connector Type:
  MS Connector
• Input Voltage:
  9-20 VDC
• Output Voltage:
  27.5 VDC
• Output Current:
  8 amps continuously, 9 Peak
• Efficiency:
  90% (13.5 VDC @ 8A)
• Over Voltage:
  20 VDC Max
• Over Current:
  110-140% > 10.0 amps Auto Recovery
• Output Ripple:
  20-25mVp-p
• Terminal Block:
  (4) Phillips Pan Head Screws
• MTBF:
  100,000 Hrs.
• Altitude:
  50,000 ft
• Temperature:
  -55°C to 71°C
• FAA Approvals:
  TSO-C71
• TSO Category:
  Category A

Product Codes

• Mfr Part No
  LS03-05002-B MS
• SCHEDULE B CODE
  8504.40.9540
