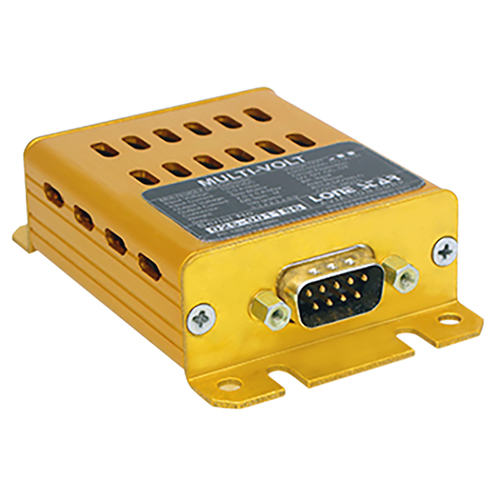

Multi-Volt DC Converter | Single Output, 9-32VDC Input

LONE STAR AVIATION

Call For Pricing

Available to order

EDMO # LS03050051

MFR Part # LS03-05005-x

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Multi-volt DC converter is designed to operate lower current devices in a ruggedized airborne environment. Designed for 12 and 24 volt aircraft systems that need an ultra-small DC converter in various output voltages to power PED devices in aircraft, rotor-craft or military vehicles. It is also FAA-TSO approved and has been tested under DO160G.

The Multi-Volt DC converter is capable of operating 3 individual outputs to 2 amps per output in a COTS package for off-the-shelf availability. The output voltage ranges from 3.0, 5.0, 7.5, 9.0, 12, 13.8, 16.0, and 19V that will operate hundreds of consumer items, pilot electronic gear or military devices needed for a mission critical airborne application. It uses Texas Instrument’s regulated IC chip made specifically for USB charging applications. This chip has 100 kHz to 2.5 MHz Fixed Switching Frequency.

This Multi-Volt DC converter (EDMO# LS03050051) is a single output converter with a 9 to 32 VDC input voltage.

Features

Offers output voltages from 3.0V to 19V for powering various devices.
Built for use in harsh airborne and military environments.
Powers up to three devices simultaneously with 2 amps per output.
Certified for safe and reliable aviation use.
Proven to withstand extreme conditions in airborne operations.
Available off-the-shelf for easy integration.
Ensures efficient power delivery with a specialized USB charging chip.
Maintains consistent performance with a fixed frequency range.

Specifications

Weight:

2.9 oz Dimensions: 3.3 x 2.13 x 0.915 in Input Voltage: 9-32 VDC Input Current: 4.0A (max.) Output Voltages: 3.3, 5.0, 7.5, 9.0, 12.0, 13.8, 16, 19 VDC Output Current: 2.5A (3.3, 5.0, 7.5, 9.0 Volts) 2.0A (12, 13.8, 16, 19 Volts) Connector Type: 9-pin D-sub Wire Gauge: 20 gauge, min. Temperature: -49°F to 131°F (-45°C to 55°5°C) Altitude: 50,000 ft (max.) Vibration: Section 8, Cat S, Curve M Load Regulation: ±2% Line Regulation: ±3% Flammability: UL94-V-O Efficiency: 90% TSO C71: RTCA DO60, DO160G
