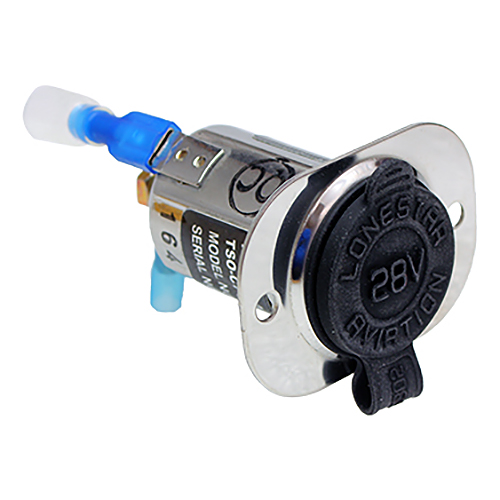

Cigarette Lighter Receptacle Power Adapter | 12 VDC & 24 VDC

Product Description

This Cigarette Lighter Receptacle Power Adapter is a universal power accessory compatible with a multitude of consumer products. Devices used in aviation as an example would be the follows: Portable GPS systems, panel GPS, Cell Phone Chargers, Laptop Power Supplies, EFB, iPad charger, (with an LS03-05021) or anything you would plug into your car, marine or industrial vehicle. This item is FAA TSO approved and tested to DO160G-RTCA.

For 12-volt aircraft electrical systems, extra equipment is not needed to operate 12-volt equipment. For 24-volt aircraft electrical systems, a 28-volt to 12-volt converter is needed to power 12-volt consumer electronic devices.

Specifications

• Dimensions:
  2.11 x 1.53 x 2.13 in
• Operating Voltage:
  10–32 VDC
• Operating Current:
  10 A (Continuous), 12 A (Peak)
• Circuit Breaker (Recommended):
  15 A
• Minimum Wire Size:
  16 AWG
• Insulator:
  Ceramic Epoxy Core
• Connectors:
  Positive: #8 Ring Terminal Negative: 0.25 in. Quick Disconnect
• Terminal Hardware:
  8-32 Lock Nut (Cadmium Plated)
• Torque Spec:
  5–6 in/lbs
• Mounting Hardware:
  8-32 x 1/2 Screw PPH or Equivalent
• Panel Hole Cut Out:
  1.15 in (w/ Mounting Bracket), 0.89 in (w/o Mounting Bracket)

Product Codes

• Mfr Part No
  LS03-05025
• SCHEDULE B CODE
  8525.60.1025
