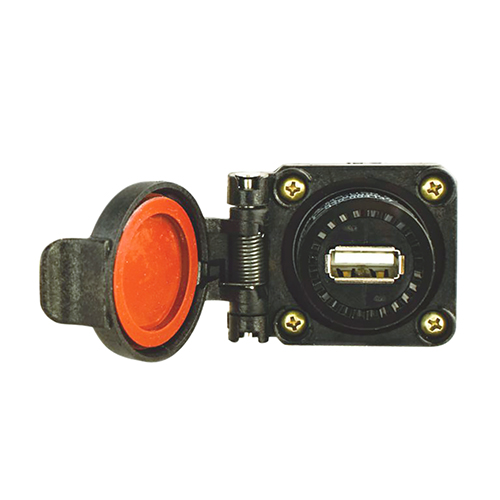

FAA-TSO MS-USB Panel Mount Device Charger | 5 V, 2.4 A

Product Description

The MS-USB Panel Mount Device Charger is designed with an eFuse circuit that regulates and manages under-voltage, over-voltage, over-current as well as short-circuit protection. The eFuse protects iPads, iPhones, as well as any USB device including the aircraft systems for optimum safety of flight and integrity for USB functionality.

The MS-USB panel mount is a MIL STD receptacle that has a dust-proof, moisture resistant silicone cap that’s built into a lightweight aluminum mounting cap.  Designed with a mate and lock connector on the rear assembly making it a plug and play installation between the 5V DC converter and the MS-USB device charger.

Specifications

• Weight:
  3.5 oz
• Dimensions:
  3 x 4 x 1 in
• Charging Output:
  5 V, 2.4 A
• Circuit Protection:
  MOV, UV, SC, ARP, OCD, OT
• Operating Temperature:
  -55° to 70°C

Product Codes

• Mfr Part No
  LS03-05050-B
• SCHEDULE B CODE
  8504.40.9580
