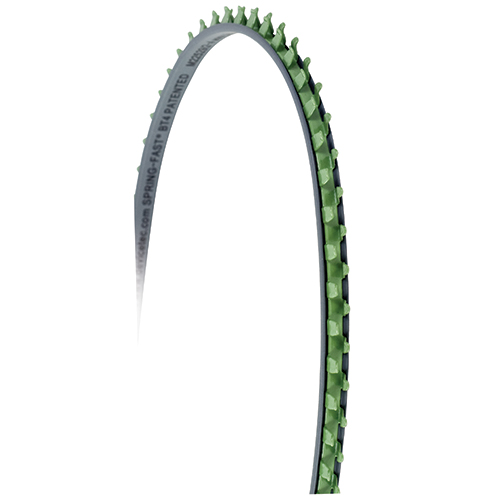

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.178 – 0.198 inch panels

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.178 â€“ 0.198 inch panels

DEVICE TECHNOLOGIES

Call For Pricing

In stock

EDMO # M/2-7R-25

MFR Part # 04-M22529/2-7R-25

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast Mil-Spec composite grommet edging is designed for the high performance needs of the defense industry for use on airframes, tactical vehicles & ground based electronics. Grommet Edging is FAA Approved and installs in seconds allowing for immediate wire routing — no adhesive curing, clean up, or inspections. The NASM2259/2 series features an abrasion resistant subsurface and a polymer cushion to provided a soft surface for protecting wires and cables.

Features

This NASM2259/2 Mil-Spec grommet edging (EDMO# M/2-7R-25):
Fits panels 0.178 in – 0.198 in thick
Width: 0.32 inches
Comes on a 25 foot roll
Features:
Meets military specifications
FAA Approved
Continuous heat up to 185°F (85°C)
Temperature operation as low as -40°F (-40°C)
High Corrosion Resistance
UL94 V-0 flammability rating
High shock and vibration resistance to RMS G 41.7
Superior dielectric strength
Continuous edge protection for 90° inside and outside corners
Continuous edge protection on inside and outside radius of any size

Also Purchased

Specifications

Sheet Thickness:

0.178 in – 0.198 in (4.50 mm – 5.00 mm)
Width:

0.32 inches (8.10 mm)
Length:

25 ft roll (7.6 m)
Axis Conformity:

2
Vicat Softening Point per ASTM D01525 Rate B:

Thermoplastic Elastomer Cushion
Operating Temperature:

-40°F to 185°F (-40°C to 85°C)
Dielectric Strength:

1,500 volt @ 60 Hz
Substrate:

Type 304 Stainless Steel
Taber Abrasion Resistance:

TPE Cushion Per D1044 1 kg load, C17 wheel 25 mg 1,000 cycles
Finish:

Epoxy Color:Lime green FED STD 595 Color Number: 14553
Salt Spray Hours:

2,000 hr, ASTM B117.MIL-STD-202, Method 301
Immersion:

Per NASM22529 and Skydrol Compatible
Random Shock & Vibration:

MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J Duration 8 hr longitudinal and 8 hr perpendicular. rms 41.7
Flammability:

UL94V-0 - File No. E113553 NZMT2 MIL-STD-202F, Method 111A FAR 25.853 Telcordia GR63 Core
