MaxDim Dimmer Control Unit | 12-35V, 12.5A, Ring Terminals

MaxDim Dimmer Control Unit | 12-35V, 15A, Ring Terminals

SEATON ENGINEERING

Call For Pricing
In stock
EDMO # 9100-001-B
MFR Part # 9100-001-B
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

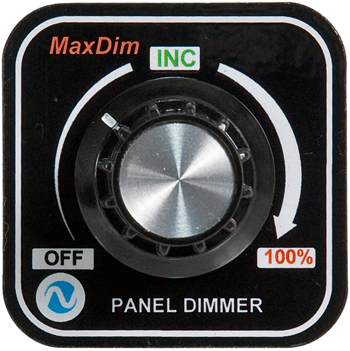

The MaxDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

This MaxDim dimmer control unit (EDMO# 9100-001-B) has ring terminals and a 12.5A max current rating.

Features

  • Single channel MaxDim PWM dimmer with ring terminals
  • Controls incandescent, LED, and electroluminescent lighting
  • Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
  • Approved as AMOC for Cessna AD 93-24-15
  • Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
  • STC/PMA approved
  • RTCA/DO-160E Section 21 RFE Qualified
  • Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knob

Also Purchased

Specifications

  • Specification
    Weight: 1 oz
  • Dimensions:
    Panel label: 1.6 x 1.6 in Control unit: 1.27 in, diameter
  • Voltage range:
    12 VDC to 35 VDC
  • Max current:
    12.5 A
  • Operating temperature:
    -30°C to 85°C
  • Internal Temperature Protection:
    85°C
  • Storage Temperature:
    -40 to 100°C
  • Maximum Internal Temperature:
    +25°C at 10A

Related Products

Product Codes

  • Mfr Part No
    9100-001-B
  • ECCN
    7A994
  • PMA
    PQ2574NM
  • SCHEDULE B CODE
    8536.90.8085
  • STC
    SA01861SE
