M81714/60 Series II Socket Junction Module | 12 Position, Size 20

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # M817146020

MFR Part # CTJ120E03D-513

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MIL-T-81714 series II, class D socket junction modules accommodates 12–26 AWG wire and provide a broad range of customized bussing arrangements. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39019/22 socket and pin contacts.

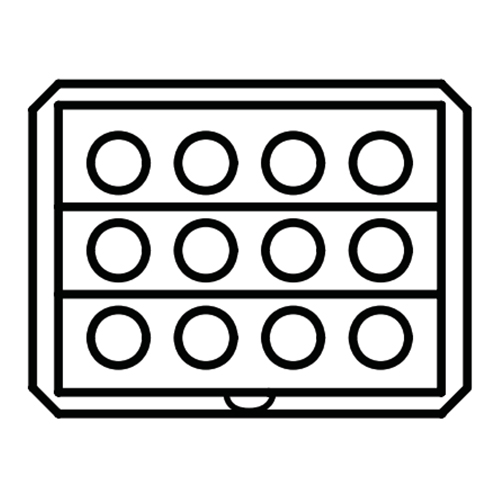

This series II socket junction module (EDMO# M817146020) features 12 contact positions each of size 20.

Features

Assures superior performance in wire sealing, contact alignment and retention, and module extraction
Lightweight junction system
Feedback modules provide a full range of bussing solutions
Distribution modules provide a variety of contact combinations
Ground modules are available in both center stud and flange mounting options
Board mount pin modules can be soldered directly to printed circuit boards without requiring a mounting track

Specifications

Temperature Range:

-65°C to 200°C
Insulation Resistance:

5,000 MΩ @ 25°C
Dielectric Withstanding Voltage:

1,500 VRMS @ sea level 200 VRMS @ 110,000 ft
Current Rating:

7.5A
Vibration & Shock:

MIL-T-81714 paragraph 3.5.5 & 3.5.8
Body Material:

Polyetherimide per ASTM-D5205
Grommet:

silicone blend elastomer per A-A-59588
Contact Retainers:

stainless steel
Internal Pin & Socket Contacts:

copper alloy, hard gold-plated (accordance with MIL-G-45204)
