Product Description

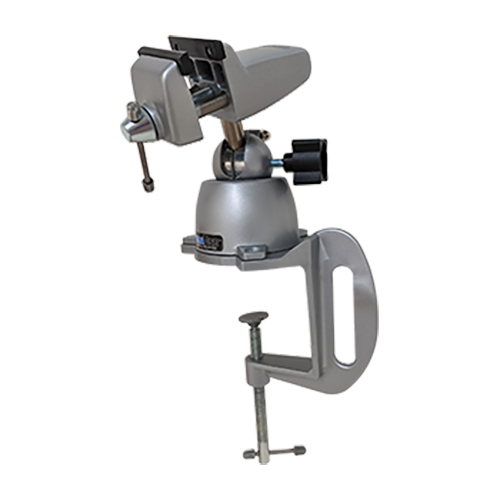

All PanaVise vises and work holding tools have a "lifetime warranty". The Heavy Duty Clamping PanaVise Combo (EDMO# MODEL313) consists of the standard head, standard base, and clamping base mount. It is a MUST for every work bench! The patented "split ball" allows the head to tilt, turn and rotate and position your work anywhere you want it.



Features

  • Includes the best general purpose Vise Head on the market
  • Known around the world as a work holding tool for hobbies, electronics, and small home repairs
  • Essential for all work bench environments
  • Nylon jaws offer excellent electrical insulation and gentle holding power
  • Standard PanaVise Base is controlled by an easy-to-use single knob that allows head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
  • Heavy Duty Clamping Base includes four non-marring, anti-skid neoprene pads for additional anti-slip characteristics without excessive tightening of the clamping screw
  • Heavy Duty Clamping Base includes finger grip for added convenience and clamps to anything up to 3.4375 in (87.3 mm) thick

Specifications

  • Base Weight:
    1.4 lbs (0.6 kg)
  • Base Height:
    3.75 in (95.2 mm)
  • Base Mount Weight:
    2.4 lbs (1.1 kg)
  • Base Mount Throat Depth:
    2.3125 in (58.7 mm)
  • Head Weight:
    1.5 lbs (0.7 kg)
  • Head Height:
    4.25 in (108.0 mm)
  • Head Throat Depth:
    1.375 in (34.9 mm)
  • Jaw Height:
    0.5 in (12.6mm)
  • Jaw Width:
    2.5 in (63.5 mm)
  • Jaw Opening:
    2.25 in (57.1 mm)
  • Head Continuous Heat Tolerance:
    200°F (93°C)
  • Head Intermittent Heat Tolerance:
    300°F (149°C)

Related Products

Product Codes

  • Mfr Part No
    313
  • SCHEDULE B CODE
    8203.20.6060
