3-Pin Microphone Plug | Nylon Body

3-Pin Microphone Plug | Nylon Body

NEXUS

Call For Pricing
Available to order
EDMO # MP-103
MFR Part # MP-103
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

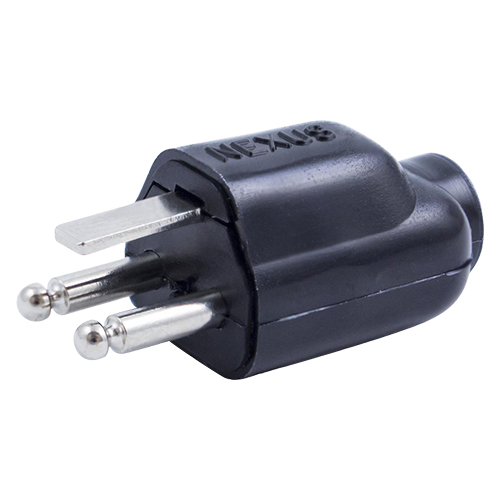

The MP-103 three-conductor microphone plug features two nickel-plated, beryllium conductors and one brass conductor housed in a nylon body. Mates with MJ-103 three-conductor microphone jack connector.

Features

  • Two (2) nickel-plated, beryllium conductors and one (1) brass conductor
  • Mates with MJ-103 three-conductor microphone jack connector
  • Includes: MP-103-5 shell, MP-103-1 insert #1, MP-103-2 insert #2, MP103-3 insert #3, MP-103-4 contact, (2) MP-101-1 contact, MP-101-4 clamp

Specifications

  • Dimensions:
    0.469 x 0.422 x 0.969 in
  • Number of Conductors:
    3
  • Body Material:
    Nylon
  • Contact Material:
    2 nickel-plated, beryllium copper; 1 brass
  • Application:
    Ruggedized commercial & military

Related Products

Product Codes

  • Mfr Part No
    MP-103
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.5050
