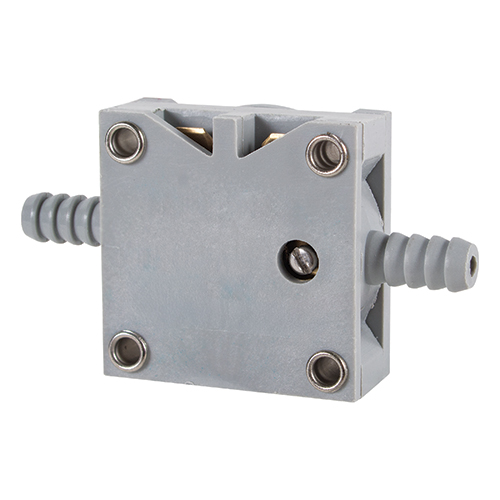

MPL 500 Series Air Pressure Switch

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # MPL-501C

MFR Part # 0501DO-GP-0010

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

MPL 500 Series switches offer pressure, vacuum, and differential sensors, sensitive to as low as 0.05 in/H2O. Air Pressure Switch that activates between 120-125 knots. Their accuracy and reliability offer the designer an excellent general purpose low pressure to electric interface for monitoring and control applications. Miniature size and low cost make the 500 Series ideal for OEM applications.

Features

Electrical:
Diaphragm material can be selected for the operating medium, temperature range, and other parameters
Actuation point can be moderately adjusted by the designer
Designed for low current and logic applications ( LED indicators, solid state relays)
10 to 20mA loads ensure reliable switching (Varistor or R-C snubber recommended for inductive loads)
Heavier loads require the use of interface devices such as solid state relays
Features an integral triac
Terminals:
NEMA 0.020 x 0.187-inch male tabs are standard
Low-profile terminals for 18-22 gage wire
Optional bifurcated terminals accept 0.020 x 0.187-inch or 0.020 x 0.110-inch female quick disconnects
Terminals are available for printed circuit board mounting.
Custom applications requiring elongated terminals, tinning, and custom wiring can also be accommodated.
Leakage:
The diaphragm functions as both sensor and seal
Dynamic applications, the diaphragm provides an adequate seal
Static applications, a secondary internal gasket will ensure a near bubble tight seal
