EKP V Portable Glass Cockpit System | GPS, EFB, PFD

Product Description

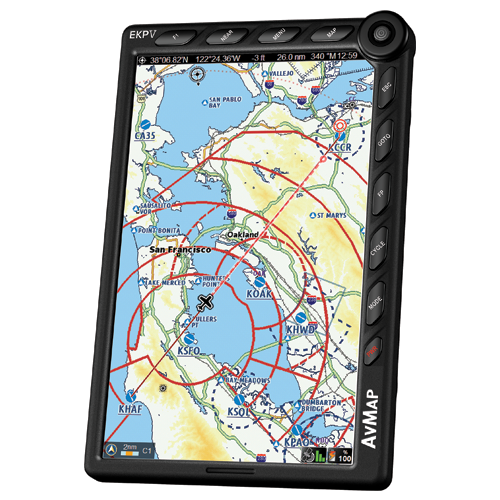

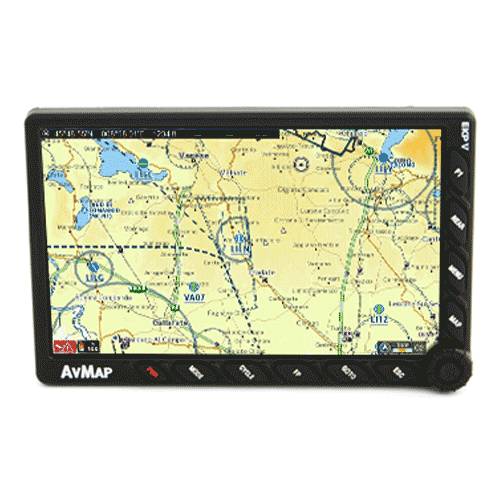

Designed for light-sport, ultralight & experimental aircraft, the AvMap EKP V redefines the role of GPS inside the cockpit. The EKP V can be both a cockpit-installed instrument and a portable device. The bright 7-inch LCD is multifunctional and capable of displaying several data sources useful for flight.

When connected to the A2 ADAHRS module through the docking station, the EKP V becomes a full-featured Primary Flight Display. This compact module is packed with solid-state 3-axis gyro, accelerometer, magnetic field sensor and air data sensor. The added A2 ADAHRS module turns the EKP V into a fast and reliable EFIS.

The EKP V is a scalable system, fully customizable with compatibility to multiple 3rd party accessories.

Specifications

• Weight:
  400 g (14.1 Oz)
• Dimensions:
  4.3 x 6.8 X 0.8 in (110 x 172 x 21 mm)
• Display:
  4.75 x 7 x 1.5 in (16:9) Color LCD TFT
• Resolution:
  800 x 480 pixels
• Power supply:
  External 10/35 V DC with cable adapter
• Battery:
  Lithium-Ion, removable, rechargeable
• Consumption:
  10 Watt, maximum

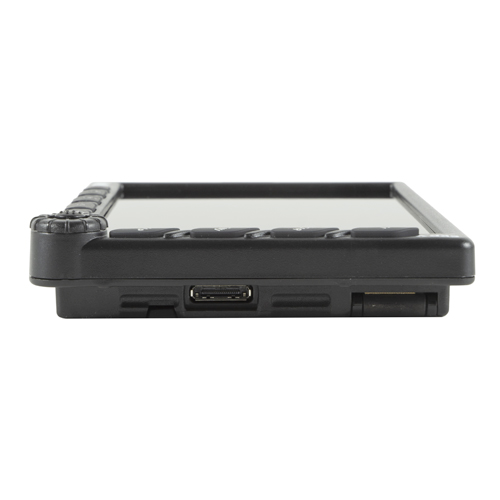

• USB OTG:
  Master / slave
• Operative temperature range:
  -20°C to 60°C

Product Codes

• Mfr Part No
  P1MK370AAM

Documentation

• EKP V User Manual
