EngiBOX Engine Monitoring System | EGT Probe Kit

Product Description

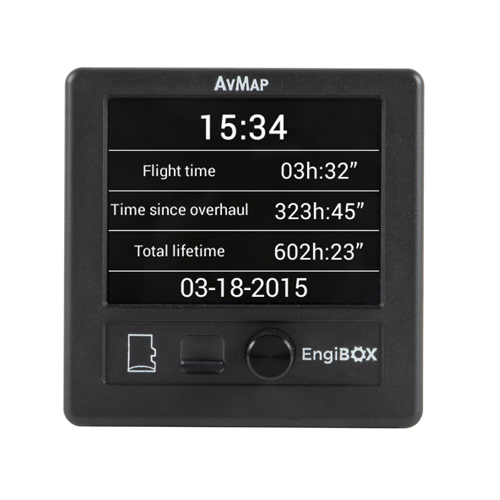

EngiBOX is a stand-alone Engine Monitoring System (EMS), developed especially for Rotax Engines, displaying the engine parameters with an update rate of five times per second and recording 160 hours of data in the internal memory. It is a rugged and reliable system designed for fixed panel installation and fits in a standard 3 1/8” diameter hole.

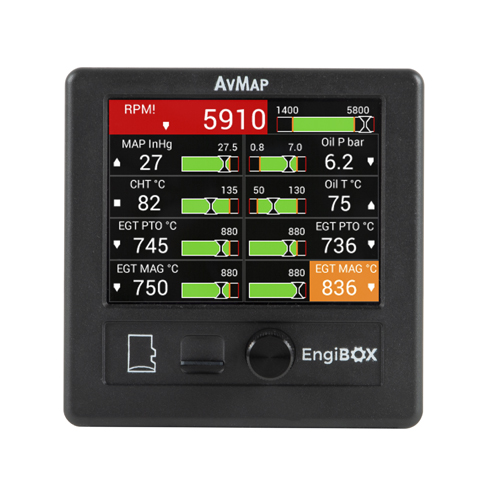

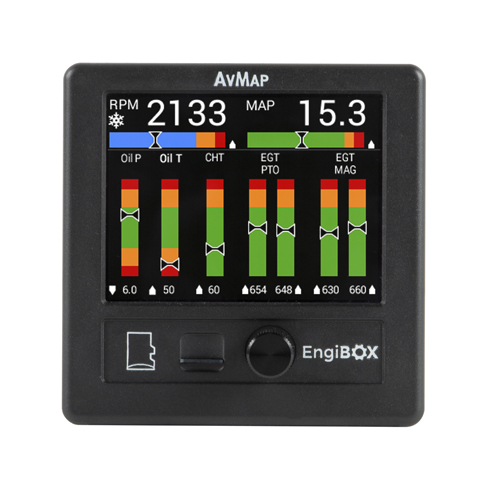

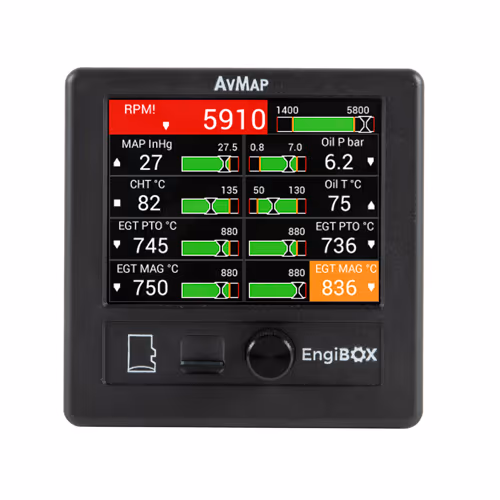

The EngiBOX displays Exhaust Gas Temperature (EGT), Revolutions per Minute (RPM), Manifold Pressure (MAP), Oil Pressure, Oil Temperature / Air Temperature, and Cylinder Head Temperature (CHT) / Coolant Temperature (CT).

Version (EDMO# UX0EMS1XAM) includes EngiBOX unit with 4 each EGT probes, ungrounded thermocouple type K connection type, M8 screw and inox soldering nut.

Specifications

• Weight:
  250 g
• Dimensions:
  3.74 x 3.74 x 3.46 in (95 x 95 x 88 mm)
• Power input range:
  10 – 35 VDC
• Current consumption:
  12VDC: 150 mA, maximum
• Operating Temperature range:
  -20° C / 70° C

Product Codes

• Mfr Part No
  UX0EMS1XAM

Documentation

• EngiBOX Manual
• EngiBOX System Guide
• EGT Probe Installation Manual
