A2 ADAHRS Module | EKP V System

Product Description

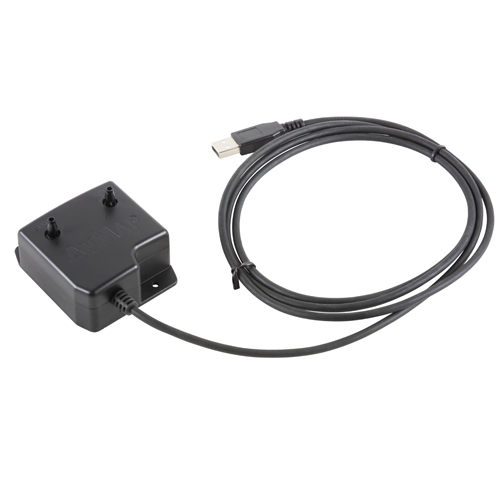

The AvMap A2 ADAHRS module is packed with solid-state 3-axis gyro, accelerometer, magnetic field sensor and air data sensors. The added A2 ADAHRS module extends the functionality of the EKP V and turns it into AvMap EFIS (Electronic Flight Information System), a centralized display for both navigation and primary flight information.

It is suggested to install the A2 aligned with the aircraft longitudinal axis, as it simplifies the attitude calibration process. The A2 can be installed in any orientation, whereafter a proper calibration needs to be performed.

Specifications

• Weight:
  1.8 oz
• Dimensions:
  2.48 x 2.28 x 0.098 in
• Temperature range:
  -40ºF to 185ºF
• Acceleration range:
  (3 axis) ±8 g
• Rotation range:
  ±1600 deg/s
• Air data sensors:
  0 – 250 kts; –3000, 44000 ft

Product Codes

• Mfr Part No
  UX0IM000AM

Documentation

• A2 ADAHRS Installation Manual
