RT-7000 Remote Mount Tactical Radio | 2 Crypto Capable WBT, FCC Wideband/Narrowband Selectable

Product Description

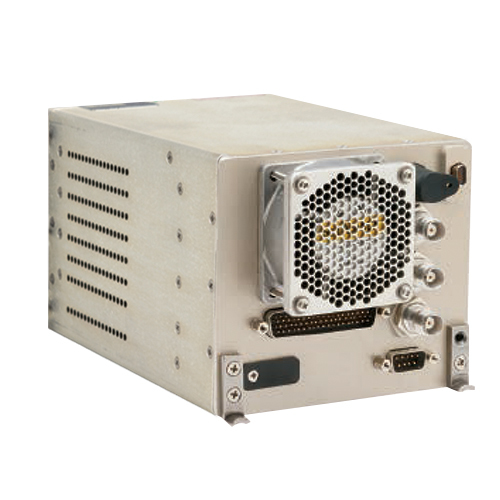

The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.

As a software-defined device, the RT-7000 can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. The Remote-Mount Radio can be controlled by a PMR, RCDU, or MCDU with an interface control document available for selected MCDU's.

This RT-7000 Remote Mount Radio (EDMO# RT7R2200) includes 2 Crypto Capable WBT cards with selectable FCC Wideband and Narrowband.

Specifications

• Weight:
  <10 lb, single RMR <20 lb, double RMR
• Dimensions:
  4.38 x 8.24 x 5 in, single RMR 4.38 x 16.48 x 5 in , double RMR
• Tunability:
  1.25 kHz incremental tuning
• Mode:
  FM/AM/P25/Trunking
• Wideband Transceiver Frequency Bands:
  30 MHz – 50 MHz, Mobile Radio 50 MHz – 88 MHz, Military 88 MHz – 117.999 MHz, FM Broadcast 108 MHz – 118 MHz, VOR Voice 118 MHz – 154 MHz, ATC and Civil Air Patrol 136 MHz – 173.999 MHz, Mobile Radio 156 MHz – 174 MHz, Maritime Radio 225 MHz – 400 MHz, Military 380 MHz – 959.999 MHz, Mobile Radio
• APX-8000 Modula Bands:
  136 MHz – 174 MHz, P25 VHF FM 380 MHz – 520 MHz, P25 UHF FM 764 MHz – 870 MHz, P25 700/800
• Channeling:
  6.25/8.33/12.5/25.0 kHz
• Search and Rescue Module Frequencies:
  121.5 MHz, AM (Civil Aircraft Emergency) 243.0 MHz, AM (Military Aircraft Emergency) 156.8 MHz, FM (Marine Voice Emergency) 156.525 MHz, FSK (Marine Digital Emergency)
• Temperature:
  -40°C to 55°C
• Altitude:
  55,000 ft
• Power Requirements:
  27.5 ±0.5 VDC, nominal input voltage 18 VDC to 33 VDC, voltage range 10 amps (max), current TX (nominal) 4 amps (typical), RX (idle)
• Transmit Power:
  ATC COMS — 4W (min) AM — 4W (min) FM — 10W P25 Conventional — 10W Motorola modules: VHF – 5W, UHF – 5W, 100/800 MHz – 3W
• APCO P25:
  All P25 Bands: Conventional common air interface CAI, Phase I & II Trunking, Analog Trunking (SmartZone, SmartNet)
• Encryption:
  FIPS 140-2, Level 2/3 P25 AES & DES Analog DES, DES-XL, DVP P25 OTAR Multikey
• Certification:
  DO-160G/EUROCAE/ED14 test rated FCC Part 15, 22, 80, 87, 90 EU (RED) Certification – Future Level C EUROCAE ED-12B RTCA DO-178C/EUROCAE/ED12* RTCA DO-254/EUROCAE/ED80* FAA TSO-C169a* EASA ETSO-2C169a* FAA STC/PMA – Future FCC Grant Approval – Certified to parts 15, 22, 80, 87, and 90 Industry Canada (IC) Certified Anatel Brazil Certification – Pending *TSO Certification Pending

Product Codes

• Mfr Part No
  RT7000RMR-002-002-0000-0000
