Static Inverter | TSO-C73, 400Hz, 500VA

Product Description

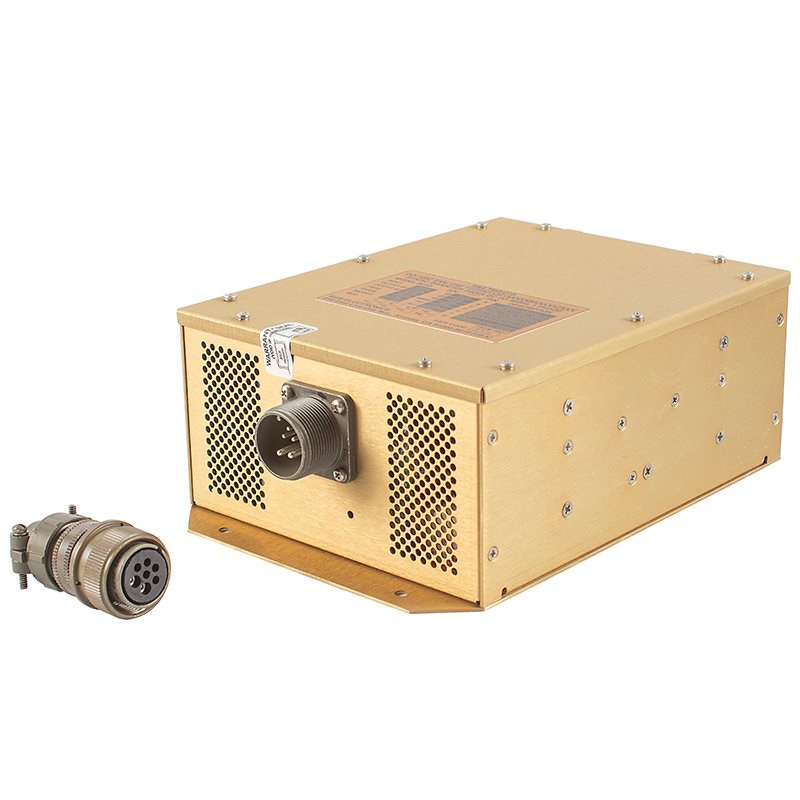

The SC50 is a lightweight, static inverter using the latest state of the art, solid state circuitry for inverting a 28 VDC input to a 115 VAC current at a 400 Hz sine wave output. The design features a crystal controlled oscillator for output frequency stability as well as a pulse-width-modulated square to sine wave power conversion scheme providing efficient and reliable operation. The SC50 is ideal to power airborne and ground instruments, such as compasses, gyros, radars and navigation equipment.

Specifications

• Weight:
  4.9 lb (2.22 kg)
• Input Voltage:
  28 VDC (nominal), 20 VDC – 36.5 VDC
• Input Current:
  20.7 ADC at full load 0.5 ADC at no load
• Output Voltage (#1, #2):
  +5%, -7% (±2% typ. on 115V) 15 VAC 26 VAC
• Output Power - 15VAC, 26VAC:
  500 VA total of 115V & 26V 500 VA 100 VA
• Output Frequency:
  400 Hz ±1.0 Hz
• Phase & Waveform:
  Single phase & sinusoidal
• Harmonic Distortion:
  0.7% (nominal), 3% max
• Power Factor:
  +0.8 to -0.8
• Efficiency:
  87% (nominal)
• Temperature Regulation:
  1% Line, 1% Load, 2.5%
• Response Time:
  300 µsec (NL to FL)
• Overload Capacity:
  110% of rated output power for 2 hr 150% of rated output power for 5 min
• Protection Circuits:
  The inverter will shutdown under the following conditions: Input Voltage >37.5 VDC ±1.0 VDC Input Voltage
• Remote On/Off:
  Yes, ground pin E to turn ON
• Operating Temperature:
  -55°C – 71° C (-65°F – 160°F)
• Altitude:
  55,000 ft

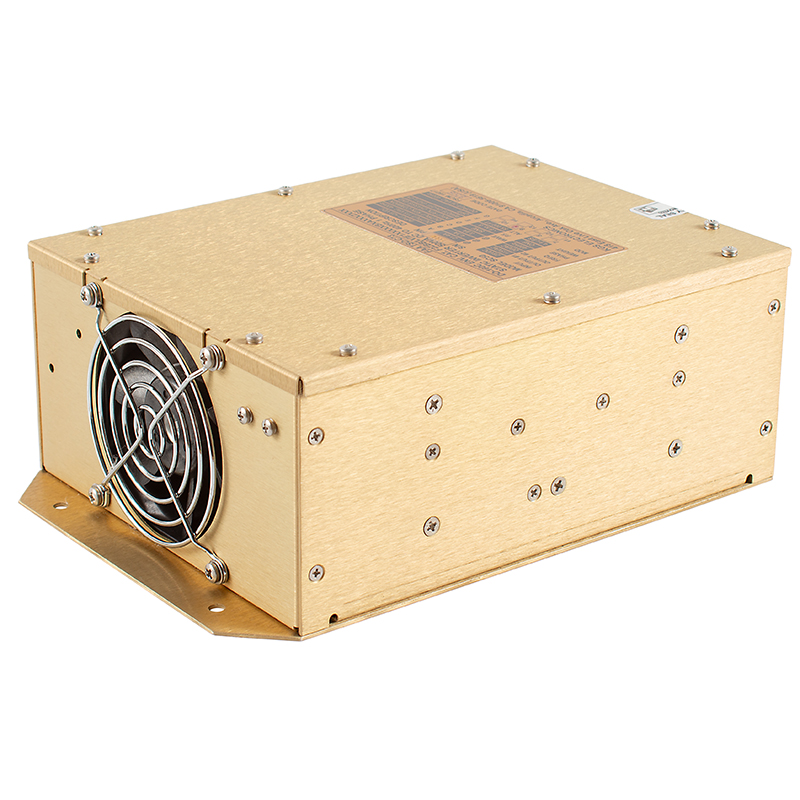

• Cooling:
  Thermostatically controlled brushless fan
• Environment:
  RTCA DO- 160C env. cat. F2ZBB(LV)XXXXXXBXAXXXZXXX
• Compliance:
  FAA TSO-C73

Product Codes

• Mfr Part No
  SC50
• ECCN
  3A225
• SCHEDULE B CODE
  8504.40.0040
• TSO
  C73
