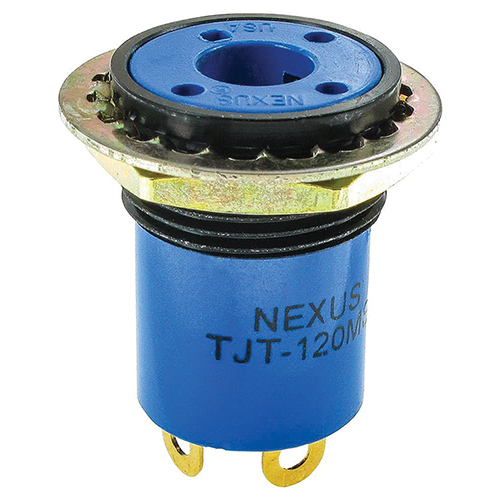

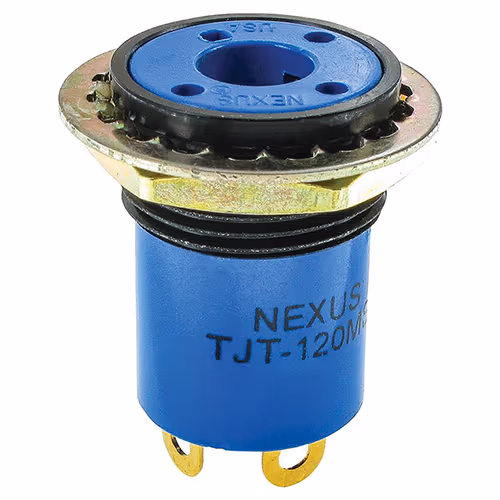

TJT-120MS Microphone & Phone Jack

MIC and PHONE JACK HOUSING/Female, black.

NEXUS

Call For Pricing
Available to order
EDMO # TJT-120MS
MFR Part # TJT-120MS
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TJT-120MS is a telephone and microphone jack with copper alloy contacts. Mates with Nexus series a TP-120 plug.

Features

  • Mates with Nexus series a TP-120 plug
  • Includes: (1) TJT-120-2 nut, (1) TJT-120-3 lock washer

Specifications

  • Dimensions:
    0.730 x 0.730 x 1.125 in
  • Contact Material:
    Nickel-plated, beryllium copper
  • Insulator Material:
    Plastic phenolic insulator
  • Jack Contact Arrangement Designator:
    J9
  • Terminal Type:
    Tab, solder lug
  • Insulation Resistance:
    100 MΩ, minimum
  • Dielectric Strength:
    500 V RMS
  • Insertion Force:
    13 lb, maximum
  • Withdrawal Force:
    5 to 10 lb

Related Products

Product Codes

  • Mfr Part No
    TJT-120MS
