TJT-125 Threaded 5-Conductor Telephone Jack | Front-Mounted

Product Description

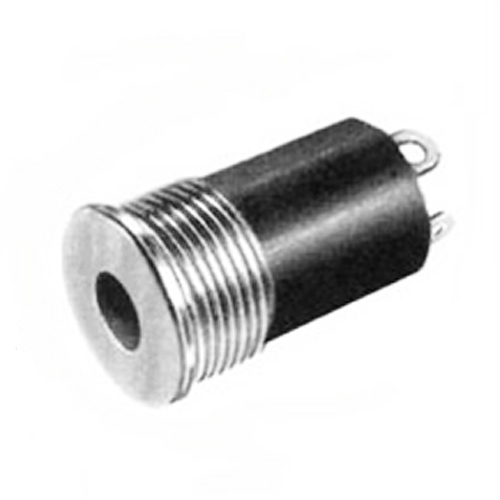

The TJT-125 telephone jack is a five-conductor, threaded jack that screws into the panel mounting hole and is secured by a lock washer and nut on the rear. Mates with Nexus series TP-105 plug.

Specifications

• Dimensions:
  0.75 x 0.75 x 1.281 in
• Number of Conductors:
  5
• Contact Diameter:
  0.285 in
• Shell Material:
  plastic
• Contact Material:
  nickel-plated, beryllium copper
• Thread:
  11/16-24 UNEF-2A
• Solder Contact Terminals:
  pre-tinned over copper nickel plating
• Contact Resistance:
  ≤ 0.02 Ω
• Insulation Resistance:
  ≥ 1,000 MΩ
• Dielectric Withstanding Voltage:
  ≥ 500 V RMS
• Insertion Force:
  13 lb, maximum
• Withdrawal Force:
  6 to 10 lb

Product Codes

• Mfr Part No
  TJT-125
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4020
