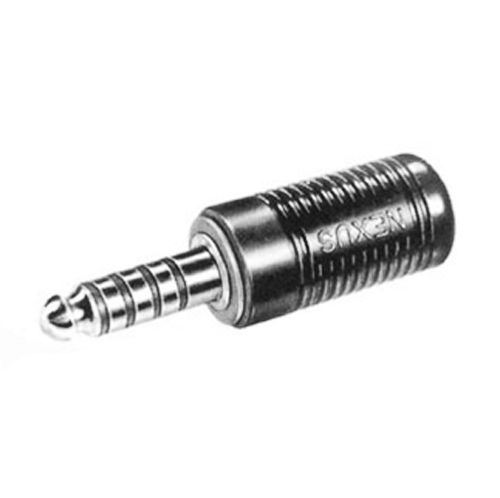

TP-105 5-Conductor Telephone Plug


NEXUS

Call For Pricing
Available to order
EDMO # TP-105
MFR Part # TP-105
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TP-105 telephone plug is a five-conductor plug molded into a red plastic body. Mates with Nexus series TJ-105 and TJT-125 jacks.

Features

  • 5-Conductor telephone plug
  • One piece monel contacts
  • Mates with Nexus series TJ-105 and TJT-125 jack
  • Includes: TP-105-12 case, TJ-105-13 strain relief clamp, TP-105-7 stack assembly

Specifications

  • Diameter:
    0.625 x 2.188 x 0.281 in
  • Number of Conductors:
    5
  • Shell Material:
    plastic
  • Contact Material:
    Monel
  • Solder Contact Terminals:
    pre-tinned over nickel
  • Contact Resistance:
    ≤ 0.02 Ω
  • In
    sulation Resistance: ≥ 1,000 MΩ
  • Dielectric Withstanding Voltage:
    ≥ 500 V RMS
  • Insertion Force:
    13 lb
  • Withdrawal Force:
    6 to 10 lb

Related Products

Product Codes

  • Mfr Part No
    TP-105
  • MIL SPEC
    M642/14-01
  • ECCN
    EAR99
  • MIL SPEC
    M642/14-01
  • SCHEDULE B CODE
    8536.69.4020
