FLIGHT CONTROL COMPUTER/3 axis

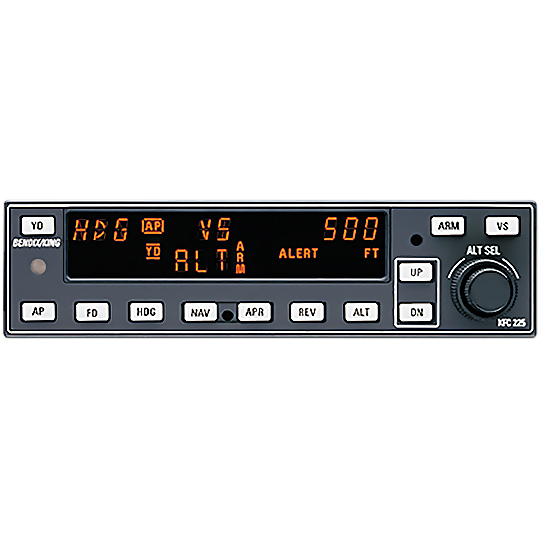

KC 225 Flight Control Computer | 3-Axis, Pitch and Roll with Yaw Damper

BENDIXKING

Call For Pricing
In stock
EDMO # 00183-2501
MFR Part # 065-00183-2501
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The KC 225 Flight Control Computer is the at the center of the KFC 225 Flight Control System. It combines the functions of computer, mode selector, altitude pre-selector, and the optional yaw damper into one unit. This three axis system provides lateral, vertical and optional yaw modes with altitude preselect.

Features

  • This KC 225 flight control computer (EDMO# 00183-2501):
  • 3-axis control computer

Specifications

  • Dimensions:
    6.306 x 1.665 x 11.26 in
  • Weight:
    3.20 lb (Including mounting rack and mating connectors)
  • Mounting:
    Panel with supplied rack Mating Connectors: Subminiature 62 pin (P2251) 78 pin (P2252)
  • Crimp Contacts:
    22 AWG
  • Temperature:
    -45°C to 70°C
  • Altitude Range:
    -1,000 – 35,000 ft
  • Power Inputs:
    28VDC @ 0.6A, nominal 14V DC @ 1.2A (not qualified for emergency operation)
  • Power Outputs:
    15 VDC @ 250 mA 5 VDC @ 50 mA (Configuration module power) 5.1 VDC @ 50 mA (Baro set reference)
  • Certification:
    TSO C52b, C9c

Product Codes

  • Mfr Part No
    065-00183-2501
  • SCHEDULE B CODE
    9014.20.40
