VHF TRANSCEIVER 25KHZ, 152MHZ, WITH SELCAL

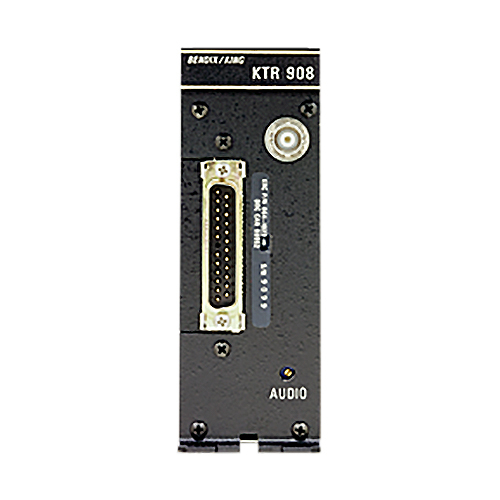

KTR 908 Digital Transceiver | VHF, 25 kHz, 118-151.975MHz, SELCAL

BENDIXKING

EDMO#: 01023-0006

MFR#: 064-01023-0006

Description

The KTR 908 VHF Communications Transceiver boasts of 760 frequencies, automatic squelch and audio leveling. 20 watts both transceiving and receiving.Version 064-01023-0006 includes SELCAL output and a 118 to 151.975 MHz frequency range.

Features

  • 118 to 151.975 MHz
  • SELCAL output
  • 760 frequencies
  • Auto leveling
  • Solid state design
  • Rigid mounting in any position
  • Automatic squelch
  • TSO'd

Specifications

Weight:
3.5 lb unit only

Dimensions:
1.75 x 11.15 x 5 in.

Power requirements:
Receive 27.5 VDC at 0.4 A, max.
Transmit 27.5 VDC at 9.0 A, max.

Temperature range:
-55ºC to 70ºC

Altitude:
50,000 ft

Frequency range:

118.000 MHz to 151.975 MHz in 25 kHz increment

Power output:
20 watt

Product Codes

Mfr Part No :

064-01023-0006

PROAPP :

PQ1354NM PT1354NM

SCHEDULE B CODE :

8525.60.1055

TSO :

C37b,C38b
