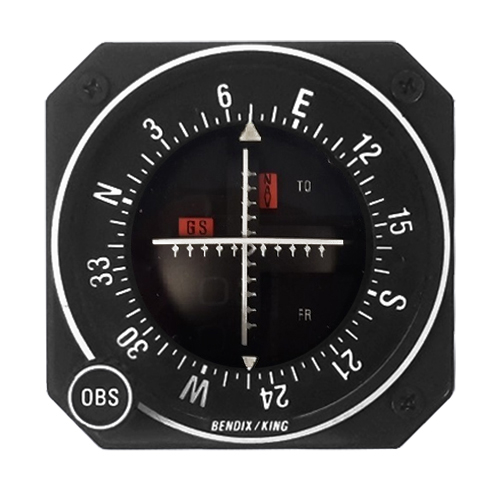

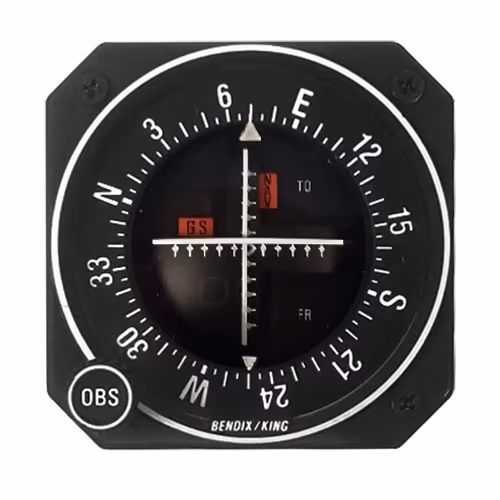

KI 206 VOR/LOC Indicator | 14/28V, Nav, TO/FROM, GS, 8 Wire 30Hz OBS

BENDIXKING

Call For Pricing

In stock

EDMO # 03034-0005

MFR Part # 066-03034-0005

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The KI 206 Radio Navigation Indicator is designed to operate with VHF navigational equipment to provide OMNI range or localizer information. The navigational information from the VHF receiver is converted to DC signals to drive the left-right needle, To-From indicator, and warning flag. The OBS knob allows the pilot to select the desired radial from the VOR station. The KI 206 can be used with a GPS system due to the lack of a built in converter to block the GPS signal path.

Version 066-03034-0005 has a black bezel with 14 or 28VDC white lighting, VOR/LOR indicator needle, Nav flag, TO/FROM flag, glideslope indicator needle & flag, 8 wire 30Hz OBS resolver, and course datum syncho.

Features

Use (ACU) to meet the FAA requirements for an instrument flight rules GPS installation
30Hz omnibearing selector
Rectilinear instead of pendulum type meter movements for more precise indicator readings
VOR/LOC left-right needle
NAV, Glideslope, and TO/FROM flags
Internally lighted
Metal bezel with glass lens
Can be used with older model KX-170/175 series radios
TSO'd

Specifications

Weight:

1.30 lb
Dimensions:

3.25 x 8.06 x 3.25 in.
Power required:

None
Lighting power:

14/28VDC
Use with:

KNS 80 NAV/RNAV/DME/glideslope, KNS 81 NAV/RNAV/glideslope, KX 165 NAV/COMM, and the KNR 634 VOR/LOC/GS/MB Receiver (at 400 Hz). Works well with the remote mounted KN 73 or KN 75 glideslope receivers, as well as the KN 72 and KN 77 remote mounted VOR/LOC converters.
