COM XCVR 25KHZ/28V SC PLUS

Product Description

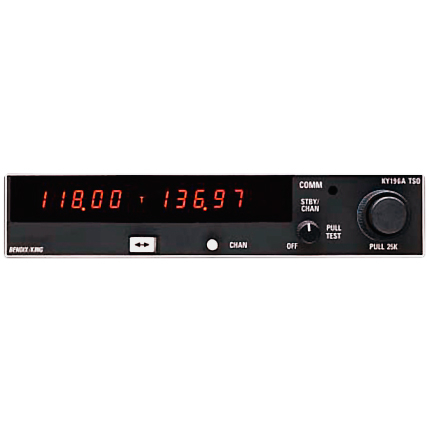

The KY 196A VHF Communications Transceiver features 760 channels, a panel mount design, and frequency range from 118 MHz to 136.975 MHz in 25 kHz channel increments. To simplify operation, the digital display show both active and standby frequencies. A ""flip-flop"" switch provides pilots simple frequency switching between active and standby frequency. Pilots can remotely call up and cycle through nine pilot-programmable channels from nonvolatile storage memory.

Specifications

• Weight:
  2.8 lb (1.27 kg)
• Dimensions:
  6.31 x 1.35 x 10.78 in (16.03 x 3.43 x 27.37 cm)
• Frequency:
  118 MHz – 136.975 kHz (25 MHz increments)
• Temperature:
  -20°C to 55°C
• Duty Cycle:
  1 minute on, 4 minutes off
• Output Rating:
  16 watt, minimum
• TSO:
  Transmitter: C37c, Class 3 Receiver: C38c, Class A

Product Codes

• Mfr Part No
  064-01054-0060
• ECCN
  7E994
• SCHEDULE B CODE
  8525.60.1025
• TSO
  C37c, C38c
