FINAL ASSEMBLY/KMA24, marker audio

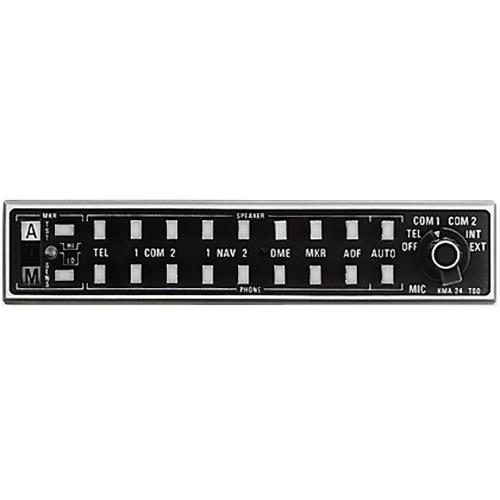

KMA24 Audio Controller | Internal Marker Beacon

BENDIXKING

Call For Pricing

In stock

EDMO # 01055-0003

MFR Part # 066-01055-0003

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The KMA 24 audio controller with marker beacon audio puts simplicity and flexibility at a pilots finger tips. With push-button controls, pilots can manage up to three transceivers and six receivers including internal marker beacon audio. Also, it features automatically dimming three-light presentation. This solid-state unit stands only 1.3 inches high to minimize space in the avionics stack.

Features

This KMA 24 audio controller (EDMO# 01055-0003):
Includes internal marker beacon receiver
Controls up to three transceivers and six receivers

Specifications

Weight:

1.7 lb (0.77 kg)
Dimensions:

6.25 x 1.3 x 6.8 in (15.88 x 3.3 x 17.30 cm)
Frequency Range:

Crystal controlled @ 75 MHz
Power:

Idle current, mic switch on: 110 mA at 13.75 V, 170 mA at 27.5V Idle current, mic switch off: < 8 mA at 13.75V, Less than 16 mA at 27.5 VMax
Operating Current:

1.9A at 13.75V, 1.9 A @ 27.5V
Temperature:

-20°C to 55°C, rated
TSO:

C35d, Class A
DO-160ENV:

A1D1/A/PKS/XXXXXXZBAAA
