CAS 66A FLAT ANT SHRT CONN

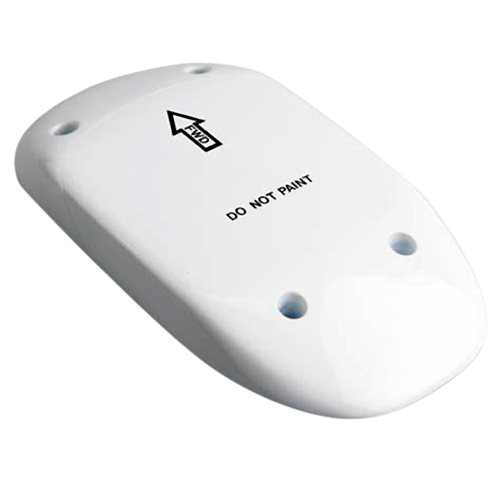

ANT-67A TCAS Directional Antenna | White, 0.73" short coax connecters

BENDIXKING

Call For Pricing

In stock

EDMO # 01548-0200

MFR Part # 071-01548-0200

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The ANT-67A is a TCAS Directional Antenna that connects to the TPU 66A & 67A TCAS I & II processor unit of the Bendixking CAS 66A & 67A TCAS system.

Features

Directional TCAS antenna for CAS-66A and CAS-67A TCAS I & II systems
Installs on either top or bottom of aircraft
Top-mounted always required in TCAS II system, bottom-mounted antenna may be used for intruder bearing
Four-element passive array
Screw mount installation (4 screws)
Radiates 1030 Mhz, pulse-modulated input from TPU-67A processor
Detects radiated 1090 MHz, pulse-modulated signals
Antenna adapter plates needed when mounting to curved surface (P/N 047-50357-0001,2,34)

Specifications

Weight:

2.0 lb (0.9 kg)
Dimensions:

6.25 in (15.88 cm)
TSO:

C118, C119A

Product Codes

Mfr Part No

071-01548-0200
ECCN

7E994
PMA

PQ1354NM THIS PART IS NOT A CRITICAL COMPONENT.
SCHEDULE B CODE

8529.10.4000
