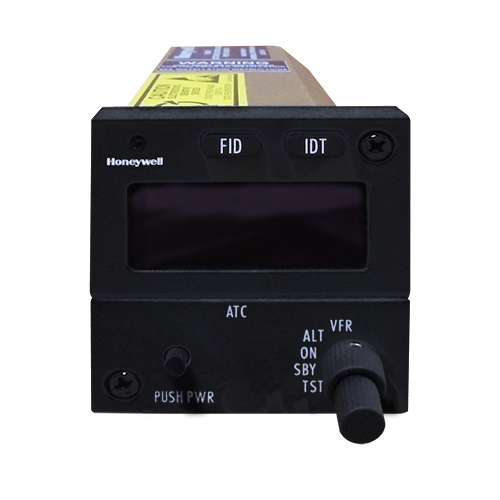

Primus II Select Control Head | Black Faceplate, Amber Display, ON/OFF

BENDIXKING

Call For Pricing

In stock

EDMO # 01618-0104

MFR Part # 071-01618-0104

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PS 578 is the control unit for use with MST-67A Enhanced Mode S Transponder (-2001/2101 versions) and contains all controls required for transponder operation including TEST, STANDBY, ON (transponder), ALTITUDE, VFR, and IDENT. The PS 578A will also display the selected 4096 ATC code and current mode of operation in the display window.

Version (EDMO# 01618-0104) has a black face with an amber display and ON/OFF switch. Compatible with single transponder operation.

Features

Lamps can be powered by 5VAC, 5VDC, or 28V dimming source
FID push button alpha numeric flight ID and annunciation
Direct replacement for KFS-578A controls
Microprocessor based
ABOVE/NORMAL/BELOW selects relative altitude display limits for non-threat category aircraft on traffic display
Complies with Enhanced Elementary Surveillance mandate for Mode S transponders in conjunction with MST-67A (-2001/2101)
Units with No Range control flash "RNG CNTRL" for 1 second and ""ON DSPL"" (On Display) for 1 second when the Range rotary is activated.
