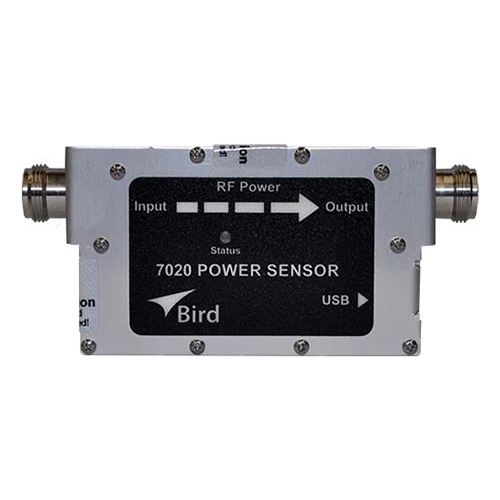

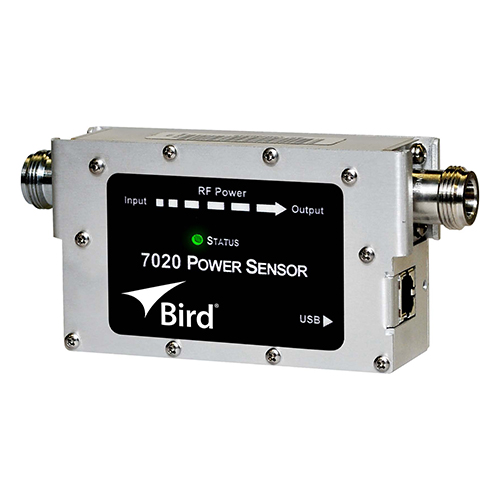

7020 Series Wideband RF Power Sensor | 350 MHz to 4 GHz, 150 mW to 150 W

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 0201010101

MFR Part # 7020-1-010101

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Bird 7020 Series of power sensors are a cost-effective, easy to use power measurement solution. This inline device doesn't require a directional coupler and plugs-and-plays with multiple display devices and utilizes the complimentary Virtual Power Meter (VPM3) application. The 7020 Series never requires field calibration giving technicians confidence in accurate field measurements. Using exceptionally accurate measurements of Forward and Reflected True Average Power and VSWR over a wide frequency range of 25 MHz to 1.0 GHz or 350 MHz to 4.0 GHz, the 7020 helps troubleshoot system failures to minimize downtime.

This 7020 series wideband RF power sensor (EDMO# 0201010101) has a frequency range of 350 MHz to 4 GHz with a power range of 150 mW to 150 W.

Features

Measures forward and reflected power and VSWR to troubleshoot system failures
Supports analog, digital, and multi-carrier signals to measure modulation independent measurements
Monitor and perform maintenance for monitoring while DUT(Device Under Test) is in-service
Economical power measurement solution
Utilizes the complimentary Virtual Power Meter (VPM3) application
Supported by 5000-NG Power Meter Display
No field calibration required

Specifications

Weight:

1 lb (0.45 kg)
Size:

4.8 x 2.6 x 1.3 in (122 x 66 x 32 mm)
Frequency Range:

350 MHz to 4 GHz
Power Range:

150 mW to 150 W
Accuracy:

± 4% of reading + 0.05 W Add 3% to uncertainty above 35 °C or below 15 °C
Forward Power for Reflected Measurement:

5.0 W min
Peak/Average Ratio:

12 dB max
Insertion Loss:

0.1 dB max
Insertion VSWR:

1.10 max
VSWR Range:

1.15 to 99.9
Impedance:

50 Ω nominal
Response Time:

100 ms
PIM Rating:

-130 dBc @ 460 MHz
Directivity:

28 dB

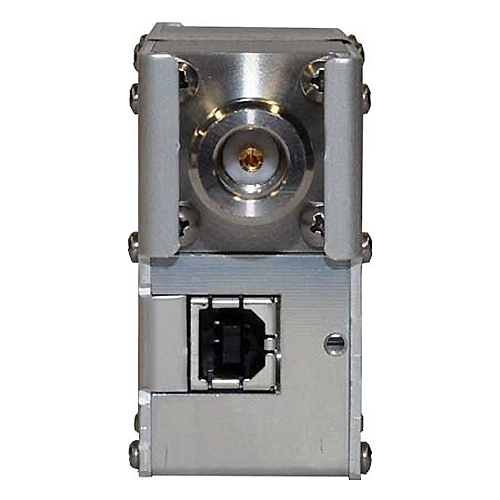

RF Connectors:

N Female
Display Interface:

USB 2.0 Type ‘B’ with “SeaLATCH” locking USB connector
Recommended Calibration Interval:

1 year
Power Supply:

5 VDC from USB host, 35 mA current draw
Data Logging:

with VPM3 software
Upgradeability:

Firmware field-upgradable via the USB port
Operating Temperature:

14°F to 122°F ( -10°C to 50°C)
Storage Temperature:

-40°F to 176°F ( -40°C to 80°C)
Humidity 95%:

max (non-condensing)
Altitude:

Up to 15,000 ft (4,572 m)
CE:

EMC Directive (2004/108/EC): European Standard EN 61326-1:2006 Electronic Equipment for Measurement, Control and Laboratory Use EMC Requirements in accordance with EMC Directive (2004/108/EC)
RoHS:

Compliant
Shock:

Mil-PRF-28800F Class 3
Vibration:

Mil-PRF-28800F Class 3
