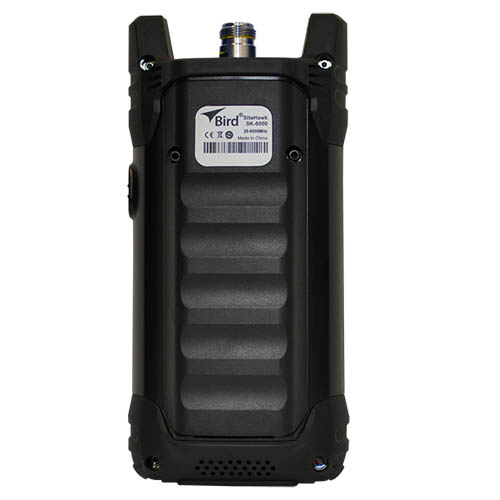

SiteHawk RF Cable and Antenna Analyzer | 1 MHz - 6 GHz

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # SK-6000-TC

MFR Part # SK-6000-TC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Bird SiteHawk series cable and antenna analyzer offers critical coverage and a wide frequency range from 1 MHz to 6000 MHz, ensuring the ability to find any discrepancies in cables and connectors. With Bird's FTF (Distance to Fault) mode, the SK-6000-TC can identify the exact location of any fault quickly and accurately.

The (EDMO# SK-6000-TC) comes standard with the calibration combo, stylus, AC adapter (12 VDC output), hard carrying case, soft carrying case, RF cable (1.0 m long), USB drive, USB adapter, manual and battery.

Features

Test RF cables and antennas at the frequency of operation.
Locate RF cable, connector and antenna problems at the source.
FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs.

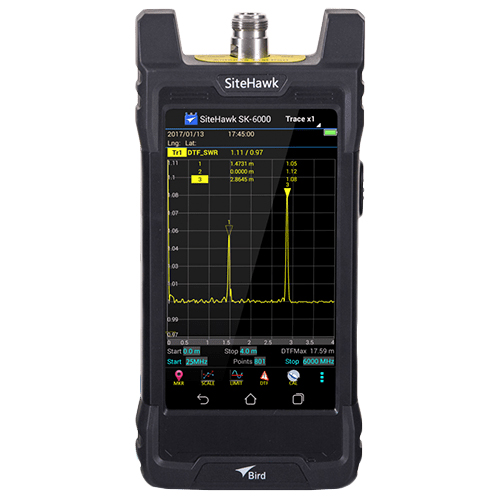

Fault location or DTF mode plots VSWR or Return Loss levels at each distance point along the cable and antenna system length.
Cable Loss function measures insertion loss of the cable system over a given frequency range.
OTG USB communication port for connection to Bird power sensors, storage devices and battery charging.

Specifications

Specification

Dimensions: 7.7 x 3.6 x 2.4 in (195 x 90 x 60 mm)
Frequency Range:

1 MHz to 6000 MHz
Frequency Resolution:

1kHz
Output Power:

-10 dBm, (typ)
Trace Noise Magnitude (IFBW 1kHz):

0.05 dB rms
Measurement Speed:

1 ms/data point
Measurement Points:

51 to 3201
Measure Bandwidth:

100 Hz to 30 kHz
Temperature Stability:

0.01 dB/°F (0.02 dB/°C)
Return Loss:

0 to -60 dB
Resolution:

0.01 dB
VSWR:

1.0 to 65.0
Cable Loss Range:

0 to 30 dB
DTF Range:

0 to 5000 ft (0 to 1500 m)
Corrected Directivity:

>38 dB
Input Voltage:

50V (max)
Immunity to Interfering Signals:

+13 dBm
Power Measurement:

Yes
Frequency Accuracy:

±2.5x10-6 @ 25°C
Reflect Amplitude Accuracy:

–15 dB to 0 dB: 0.4 dB –25 dB to –15 dB: 1.5 dB –35 dB to –25 dB: 4.0 dB
USB:

Type-C, 3.0
Test Port:

N-type Female, 50 Ohms
Operating Temperature:

14°F to 131°F (-10°C to 55°C)
Storage Temperature:

-40°F to 176°F (-40°C to 80°C)
Battery Charging Temperature:

32°F to 95°F (0°C to 35°C)
Display:

5.5", 720p
Languages:

English, Chinese, Spanish
Battery Type:

Lithium-ion rechargeable
Battery Operating Time:

10 hrs. (typical)
Battery Charge Time:

5 hrs. (typical)
Storage Capacity:

Thousands of trace and setups
Recommended Calibration Interval:

3 years
CE Certification:

Yes
EMC Certification :

Standard EN 61326-1:2006
Safety Certification :

Standard EN 61010-1:2001
