Bird RF Adapter Kit | 15 50-ohm Adapters

INTERSERIES ADAPTER KIT

BIRD ELECTRONICS

Call For Pricing
Available to order
EDMO # 4240-401
MFR Part # 4240-401
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

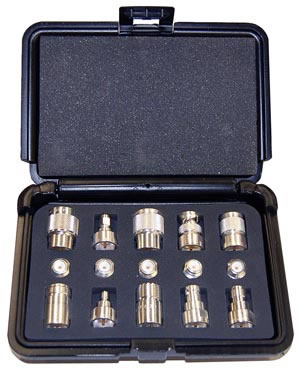

The adapter kit allows assembly of compact, precision 50 Ohm adapters to meet up to 45 different matching requirements. The adapters offer low VSWR because of precision matching and tight mating tolerances. The N (F)/N combination, for example, is below 1.05 to 1 GHz and below 1.1 to 2.5 GHz. Model 4240-401 can fashion 45 combinations and includes enough couplers to assemble 5 complete adapters at the same time.

Features

  • Kit Includes:
  • Male N connector (4240-402) 1 ea
  • Female N connector (4240-403) 1 ea
  • Male BNC connector (4240-404) 1 ea
  • Female BNC connector (4240-405) 1 ea
  • Male TNC connector (4240-406) 1 ea
  • Female TNC connector (4240-407) 1 ea
  • Male UHF connector (4240-408) 1 ea
  • Female UHF connector (4240-409) 1 ea
  • Male SMA connector (4240-410) 1 ea
  • Female SMA connector (4240-411) 1 ea
  • Coupler (4240-413) 5 ea
  • Case

Specifications

  • Weight:
    13.44 oz
  • Dimensions:
    6.5 x 4-5/8 x 1-11/16 inch

Related Products

Product Codes

  • Mfr Part No
    4240-401
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
