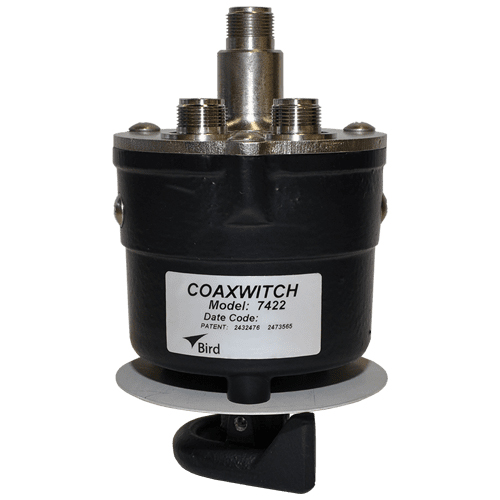

Coaxwitch Series RF Selector Switch | 2 Position, Single Circuit

Product Description

Bird 50-Ohm Coaxwitch Series RF Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4.5 inches of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position. The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

This Coaxwitch Series RF Selector Switch (EDMO# 7422) is a 2 position, single circuit switch.

Specifications

• Weight:
  2.5 in (1.1 kg)
• Connectors:
  N-type (Female)
• Frequency Range:
  DC–10 GHz
• RF Voltage:
  500 V rms (max)
• VSWR:
  100 MHz: Negligible 1 GHz: 1.06 (max) 4 GHz: 1.30 (max)
• Insertion Loss:
  100 MHz: 0.02 dB 1 GHz: 0.09 dB 4 GHz: 0.22 dB
• RF Power:
  Max. Rating @ 65°C 100 MHz: 850W 1 GHz: 200W 4 GHz: 75W
• Temperature Range:
  -76°F to 149°F (-60°C to 65°C)
• Attenuation:
  For Unused Channel: 75 dB (cross talk)

Product Codes

• Mfr Part No
  7422
• SCHEDULE B CODE
  8544.42.0000
