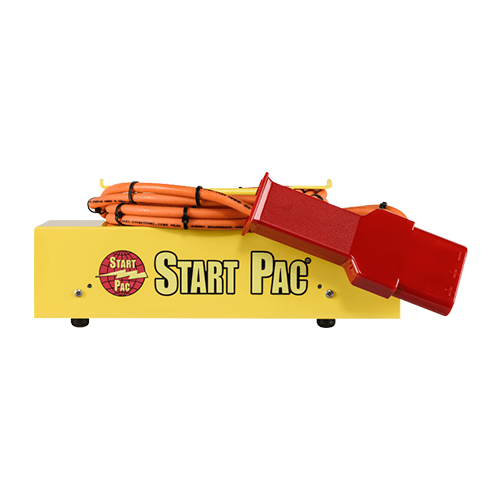

53050/12 Start Pac Light Aircraft Power Supply | 14.2VDC Output, 50A Current, 220V Input

Product Description

The Start Pac model 53050/12 is designed to power up 12-volt aircraft systems and provides a continuous current up to 50-amps. The 14 volt output is designed to simulate the aircraft's power when operating on its own.

Start Pac mini aircraft power supplies have been specifically designed for light avionics maintenance to power up various functions such as inverters, avionics, and GPS programming/ equipment. Technicians can preform aircraft maintenance without using the aircraft's onboard battery thus preventing unnecessary wear and conserving aircraft power for startup purposes. The low VOC powder coating protects the Start Pac from wear and weather conditions.

This Start Pac aircraft power supply (EDMO# 53050/12) operations on 220-volt AC power and has a 50A/12-volt current output.

Specifications

• Weight:
  7 lb (3 kg)
• Dimensions:
  11-3/4 x 5 x 4 in (30 x 13 x 10 cm)
• Continuous Current Output:
  50A, max.
• DC Voltage Output:
  14.2 VDC
• AC Voltage Input:
  90 VAC — 240 VAC
• AC Current Input (max. DC output power):
  7A @ 110 VAC 3.5A @ 220 VAC
• Phase:
  Single
• Forced Air-Cooling:
  Yes
• Circuit Protection:
  Over-current, over-voltage, over-temperature

Product Codes

• Mfr Part No
  53050(12V)
• ECCN
  5A991
• SCHEDULE B CODE
  8504.40.9580
