Tasklight 600 LED Cockpit Map Light | Red, 12V-24V, Panel Mount


OPLITE

Call For Pricing
Available to order
EDMO # 600-TH-1-R
MFR Part # TASK600-TH-1-R
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Tasklight 600 map light installs easily into the panel and features a built-in dimmer switch and on/off switch. This map light is available in a single color mode or dual color mode: all red, all white, all blue, or all green; as well as red & white, blue & white, or green & white. These task lights are manufactured and tested to ISO 9001:2008 and AS9001C for quality and traceability.

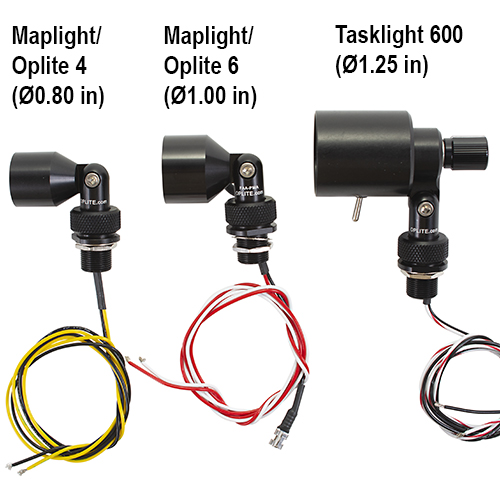

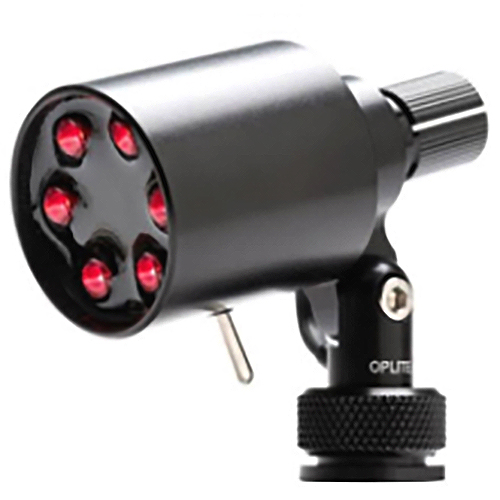

This Tasklight 600 (EDMO# 600-TH-1-R) has red-colored lighting and a lamp head diameter of 1.25 inches.

Features

  • Built-in dimmer & On/Off switch
  • Compatible with 12-volt and 24-volt systems
  • Machined from high quality CNC machined, 6061T6 aluminum
  • Black anodized

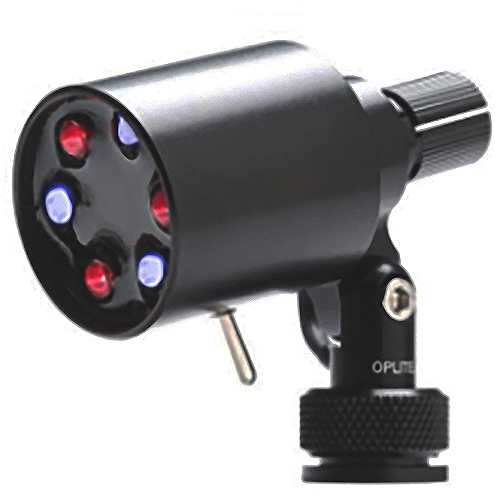

  • Dual color models: red & white, blue & white, green & white
  • Single color models: red, white, blue, and Green
  • Available in either thru panel mount or a six-inch gooseneck

Also Purchased

Specifications

  • Installed Height:
    2.53 in (at 90° position)
  • Lamp Head:
    1.25 x 2.40 in
  • Thread:
    15/32-32 x 0.45 in
  • Color:
    Red
  • Input Voltage:
    12–24 V
  • Mounting Hole:
    15/32 in thru hole
  • Approvals:
    Engineered in adherence to AS9100 certification

Related Products

Product Codes

  • Mfr Part No
    TASK600-TH-1-R
