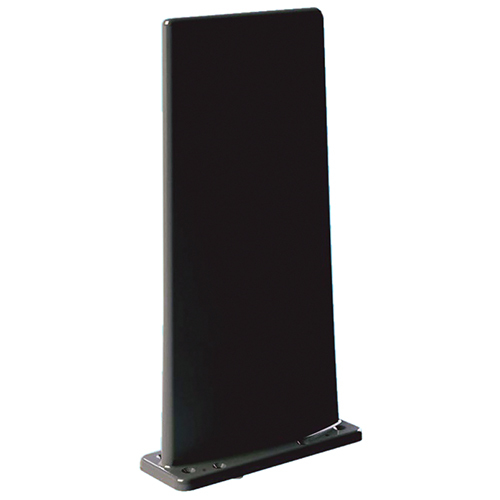

Type 9-33-26 VHF/UHF Broadband Antenna | 30 MHz - 512 MHz

Product Description

The 9-33-26P3 VHF/UHF Broadband Antenna is designed to provide communications over the 30 MHz to 512 MHz frequency range for general purpose airborne applications. This VHF/UHF antenna is configured as a broadband fan monopole incorporating a frequency dependent matching network to ensure acceptable VSWR at lower frequencies, while preserving optimum gain at higher frequencies. A susceptance compensation network is included for gain enhancement at lower frequencies. The 9-33-26P3 is composed of a pressure molded composite radome housed within which houses the electrical assembly, and an aluminum alloy baseplate supports a single RF connector.

Specifications

• Weight:
  1 kg
• Dimensions:
  331 x 66 x 173.5 mm, maximum
• Aerodynamic Loads:
  3500 kgf/m2 (5 psi) (minimum ultimate)
• Aerodynamic Drag:
  19N (1.95 kgf) at 250 knots EAS and 457.2 m
• Mounting Configuration:
  8 holes fixed location
• Electrical:
• Frequency:
  30 to 512 MHz
• Gain:
  > -25 dBi @ 30 MHz > -15 dBi @ 88 MHz > -4 dBi @ 118 to 174 MHz > 0 dBi @ 225 to 215 MHz
• Polarization:
  Predominantly vertical when mounted vertically
• Radiation Pattern:
  Omni-directional in azimuth
• Power Rating:
  25 W CW @ 30 to 174 MHz, maximum 45 W CW @ 225 to 400 MHz, maximum
• Impedance:
  50Ω, nominal
• VSWR:
  < 2.5:1
• Connector:
  TNC Type Female
• Environmental:
• High Temperature:
  MIL-STD-810E, Method 501.3, Procedures I and II Continuous Operational: 55°C Intermittent Operational: 71°C Storage: 85°C
• Low Temperature:
  MIL-STD-810E, Method 502.3,Procedures I and II Operational: -54°C Storage: -57°C
• Altitude:
  MIL-STD-810E, Method 500.3, Procedures I and II Operational: 15,240 m Storage: 15,240 m
• Temperature Shock:
  MIL-STD-810E, Method 503.3
• Vibration:
  MIL-STD-810E, Method 514.4, Procedure I, Category 4 0.01 g2/Hz 15 to 2000 Hz L1 = 0.6 g2/Hz at 68 Hz
• Shock:
  MIL-STD-810E, Method 516.4, Procedures I and V Functional: 20 g, 11 ms, sawtooth Crash Hazard: 40 g, 11 ms, sawtooth
• Rain:
  MIL-STD-810E, Method 506.3, Procedure I Normal operation when exposed to blowing rain
• Humidity:
  MIL-STD-810E, Method 507.3, Procedure III 95% relative humidity at 60°C
• Salt Fog:
  MIL-STD-810E, Method 509.3, Procedure I 48 hours exposure to 5% salt solution
• Acceleration:
  MIL-STD-810E, Method 513.4, Procedure I 13.5 g all axes
• Magnetic Effect:
  RTCA DO-160D, Section 15, Category Z Less than 1° deflection at 300 mm

Product Codes

• Mfr Part No
  9-33-26P3
