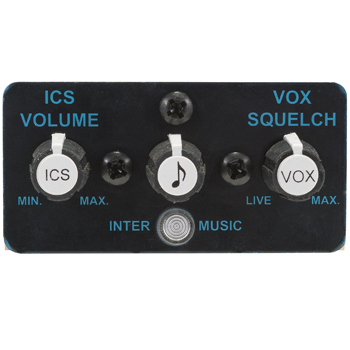

AA82-060 InterMusic Intercom | Stereo ICS,6 Place Passenger

CANYON AEROCONNECT

Call For Pricing

In stock

EDMO # AA82-060

MFR Part # AA82-060

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AA82 (AA82-060) InterMusic™ intercom system is designed to meet the needs of pilots and crew in demanding environments. This InterMusic™ unit supports up to six positions and can be linked via a tie line to the forward flight crew when using an AA83 intercom system. The AA82 offers passengers full control of their intercom and entertainment functions. The front panel controls allow users to adjust their intercom level, VOX threshold, and music level. Receive level, receive balance, ICS balance, ICS bass, music muting and balance can be set using internal controls. With these controls, users can make intercom audio appear to be coming from the left and receive audio from the right, this is useful to assist users in identifying the source of incoming audio. Stereo audio is muted during incoming transmissions to increase intelligibility. A front panel indicated allows easy visual setting of VOX threshold and indicates RX signals.

Features

ANF™ (Active Noise Filtering) provides clean and clear intercom communications by filtering out unwanted ambient noise
Built with high quality components such as sealed gold plated contacted switches, dry nitrogen filled/high vibration rated sealed relays, gold contact connector and a fully masked, post coated, flame retardant circuit board
Pilot Isolated Mode provides pilots with a separate communications channel that is separate from passenger intercom or music
Music is muted during all radio and ICS activity and slowly returns to normal volume when ICS operation is finished
11 to 32 VDC power input
Headset output power rating: 100mw into 600Ω per channel
Bicolor LED-ICS/Tx activity indicator lights up amber for ICS activity and green for transmit
Pilots can override the co-pilot during radio operations
Individual microphone gating reduces aircraft noise within the intercom through independent microphone circuits
Horizontal or vertical mount options available
Emergency Fail-Safe automatically bypasses the ICS feature and is routed back to the radio audio system in the event of power loss
Short circuit protection ensures continued operation in the event of headset failure

Specifications

Weight:

0.6 lb (283.5 g)
Dimensions:

1.3 x 5.6 x 2.6 in (33 x 142.2 x 66 mm)
Mounting:

Horizontal or vertical with reversible faceplate for through-panel mounting
Input Power:

11 to 32 VDC
Supply Current:

385 mA, maximum @ full power
Headset Power:

400 mW per channel 100 mW typical into each headset element (300Ω/side) 4 headsets (AA82-001) 6 headsets (AA82-060)
Lighting:

160 mA @ 28 VDC 600 mA @ 5 VDC
Modes of Operation:

voice track trigger circuit adjustable threshold on panel live or hot mic be rotating VOX control counterclockwise
Indicators:

Receive monitor: Green LED VOX ICS triggered: Amber LED
Front Panel Controls:

ICS volume Music level
Internal Side Panel Controls:

RX volume RX balance ICS balance Music balance
Inputs (AA82-001):

4 microphones, carbon equivalent, 250 mVRMS for 150Ω input 4 ICS keylines, active ground for all users 2 music inputs, left/right compatible for portable CD/cassette, phones compatible (3Vp-p)
Inputs (AA82-060):

4 microphones, carbon equivalent, 250 mVRMS for full 150Ω input 6 ICS keylines, active ground for all users 2 music inputs, compatible left/right, configurable for either portable CD/cassette, phones (3-Vp-p) or CD changer line out
Inputs All Modes:

1 radio input, 2.5 VRMS for full output, 1kΩ input bi-directional ICS Tie Line, 1 Vp-p for full output, 2kΩ input
Outputs (AA82-001):

4 aircraft stereo headsets, 300Ω/side Not designed for 8Ω headsets
Outputs (AA82-060):

6 aircraft stereo headsets, 300Ω/side Not designed for 8Ω headsets
Logic:

ICS and RX audio both mute the music channel No emergency or transmit functions
Operating Temperature:

-40°C to 70°C
Storage Temperature:

-55°C to 85°C
Humidity:

95%, non-condensing
Altitude:

25,000 ft
