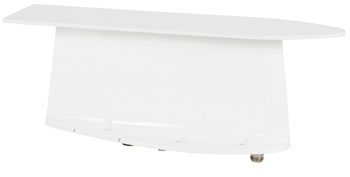

AT-5000 Tuned Blade Antenna | 29.7-960 MHz, 5.5"", White

Product Description

The AT-5000 antenna is designed for the Flexcomm™ RT-5000 transceiver, covering the entire frequency range from 29.7 MHz to 960 MHz. The 5.5 inch low profile antenna is for applications where height is a critical factor.

*FC-5000 Tuner Required

Specifications

• Weight:
  3.5 lb
• Dimensions:
  3.6 x 11.8 x 5.5 in.
• Frequency:
  29.7 - 88 MHz 108 - 174 MHz 225 - 400 MHz 400 - 960 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation pattern:
  Omnidirectional
• Impedance:
  50Ω
• Power (RF):
  Low split - 15 W High split - 25 W
• Temperature:
  -55ºC to +70ºC
• Altitude:
  55,000 ft

Product Codes

• Mfr Part No
  121-040045-01
• MIL SPEC
  MIL-E-5400, MIL-STD-810E
• MIL SPEC
  MIL-E-5400, MIL-STD-810E
• NSN
  5985-01-552-5665
