VHF/UHF Broadband Avionic Blade Antenna | 30—512 MHz, 50Ω, 100W, Black

MATTERWAVES

Call For Pricing

Available to order

EDMO # B530512EXT

MFR Part # MAT-B5-0.03-0.512-XT4-EXT

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

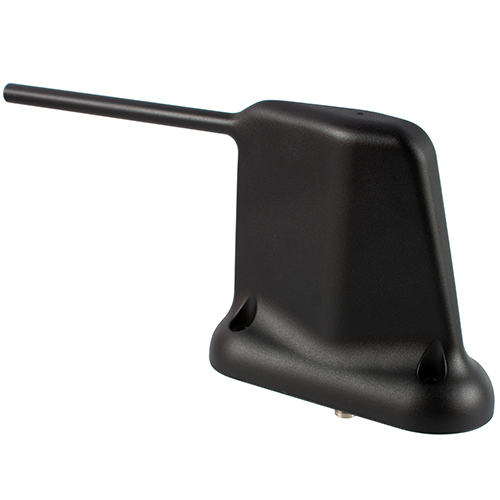

VHF/UHF avionic, broadband, blade antenna (EDMO# B530512EXT) operates on 30 MHz to 512 MHz frequencies with a 50 ohm impedance, and has a 100 watt power handling capacity. Painted lusterless black #37038 per FED-STD-595B.

Features

30 MHz — 512 MHz extended VHF/UHF frequency range
100 watt power handling capacity
70,000 ft altitude range

Specifications

Dimensions:

2.062 x 5.25 x 5.721 in (52.37 x 133.35 x 119.91 mm) Weight: 18 oz (510 g) Frequency Range: VHF/UHF: 30 MHz — 512 MHz Pattern: Omnidirectional Polarization: vertical Antenna Gain: 30 MHz: -27 dB 60 MHz: -25 dB 90 MHz: -17 dB 140 MHz: -8 dB 200 MHz: 0 dB 300 MHz: 1.5 dB >400 MHz: 1.5 dB VSWR: 20 MHz — 100 MHz: 3.5:1 >100 MHz: 2:1 Phase Tracking: ±3° Impedance: 50Ω Power Handling: 100 watts Lighting Protection: DC grounded Connector Type: TNC female Finish: Skydrol resistant polyurethane enamel base iridite per MIL-C-5441F Material: 6061-T6 aluminum alloy base composite radome (impact, abrasion, UV, solvent, skydrol resistance, and fire retardant) Temperature Range: -71°F to 203°F (-57°C to 95°C) Altitude: 70,000 ft Vibration: 14 G's Leakage: hermetically sealed Federal & Military Specifications: TSO C169A, C37b, C38b, C144, DO-160D, DO-228, MIL-STD-461E/F, MIL-E-5400, MIL-C-5541F, MIL-I-45208A, MIL-STD-810, MIL-S-901D, MIL-STD-167-1A, SAE J1455
