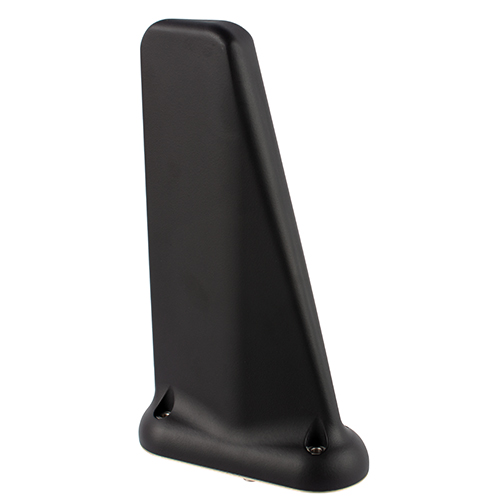

AIS Avionic Blade Antenna | 161—163 MHz, 50Ω, 100W, Black

MATTERWAVES

Call For Pricing

Available to order

EDMO # B9161-163B

MFR Part # MAT-B9-161-163-XT4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

AIS avionic, blade antenna (EDMO# B9161-163B) operates on 161 MHz to 163 MHz frequencies with a 50 ohm impedance, and has a 100 watt power handling capacity. Painted lusterless black #37038 per FED-STD-595B.

Features

161 MHz — 163 MHz extended AIS frequency range
100 watt power handling capacity
70,000 ft altitude range

Specifications

Weight:

11.3 oz (320 g) Dimensions: 2.062 x 5.25 x 9.055 in (52 x 133 x 230 mm) Frequency Range: 161 MHz — 163 MHz Pattern: Omni/Az & Cos/El Polarization: vertical Antenna Gain: -1 dB VSWR: 3:1 (max) Output Impedance: 50Ω Power Handling: 100 watts Lighting Protection: DC Grounding Finish: Skydrol resistant polyurethane enamel base iridite per MIL-C-5441F Material: 6061-T6 aluminum alloy base composite radome (impact, abrasion, UV, solvent, skydrol resistance, and fire retardant) Connector: TNC female Temperature Range: -71°F to 203°F (-57°C to 95°C) Altitude: 70,000 ft Vibration: 14 G's Leakage: hermetically sealed Federal & Military Specifications: TSO C169A, C37b, C38b, C144, DO-160D, DO-228, MIL-STD-461E/F, MIL-E-5400, MIL-C-5541F, MIL-I-45208A, MIL-STD-810, MIL-S-901D, MIL-STD-167-1A, SAE J1455
