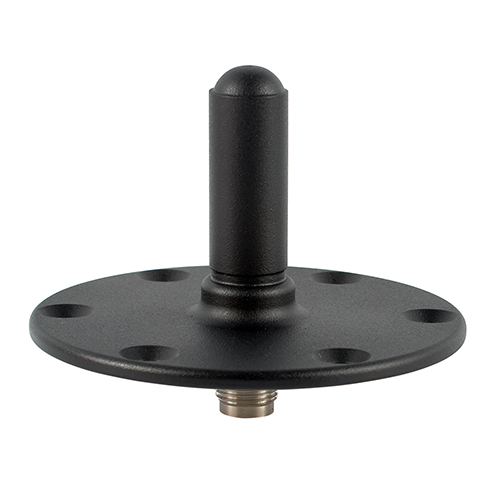

L-Band & S-Band OMNI Antenna | 1.5—3.0 GHz, Black, Telemetry, Link16, PCS, 4G-LTE

MATTERWAVES

Call For Pricing

Available to order

EDMO # MAT-LINK16

MFR Part # MAT-1.75RW3-1.75-3.00-XT4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This L-band and S-band omni antenna is designed for telemetry, link16, PCS, and 4G-LTE applications. It operates on a frequency range from 1,500 MHz — 3,000 MHz with a 50 ohm impedance, and has a 6 kW power handling. Painted lusterless black #37038 per FED-STD-595B.

Features

1,500 MHz — 3,000 MHz frequency range
6 kW CW & 7 kW Peak power handling capacity
70,000 ft altitude range

Specifications

Weight:

<2 oz (57 g)
Dimensions:

3 x 1.7 in (76 x 43 mm)
Frequency Range:

1,500 MHz — 3,000 MHz
Pattern:

omnidirectional
Polarization:

vertical
Antenna Gain:

1/4 wave
VSWR:

2.0:1
Elevation Beam Width:

70° (3 dB)
Azimuth Beam Width:

360° (3 dB)
Output Impedance:

50Ω
Power Handling:

6 kW CW & 7 kW Peak @ 20% duty cycle
Finish:

Skydrol resistant polyurethane enamel base iridite per MIL-C-5441F
Material:

6061-T6 aluminum alloy base composite radome (impact, abrasion, UV, solvent, skydrol resistance, and fire retardant)
Connector:

TNC female
Temperature Range:

-80°F to 250°F (-62°C to 121°C)
Altitude:

70,000 ft
Vibration:

20 G's
Leakage:

hermetically sealed / IP69K
Federal & Military Specifications:

FAA TSO C139/C144, D-160D, DO-228, MIL-STD-810G, MIL-C-5541 MIL-E-5400, MIL-I-45208A, SAE J1455
